Specificaties
| Design | |
|---|---|
| Cooling type | Passive |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Maximum resolution | 4096 x 2160 |
| Parallel processing technology support | Not supported |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC-compatibiliteit | non-ECC |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 |
| Maximum internal memory | 256 |
| Ondersteunde geheugenkloksnelheid (max) | 8200 |
| Niet gebufferd geheugen | Ja |
| Maximaal intern geheugen per slot | 64 |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Geen |
| LAN controller | Realtek RTL8125 |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Accu/Batterij | |
|---|---|
| Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Gewicht batterij | 3 |
| Lithiumgewicht per batterij | 0.07 |
| Aantal batterijcellen | 1 |
| Gewicht en omvang | |
|---|---|
| Breedte | 244 |
| Diepte | 244 |
| Hoogte | 35 |
| Inhoud van de verpakking | |
|---|---|
| Screws included | Ja |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batterijen inbegrepen | Ja |
| Kenmerken | |
|---|---|
| Component for | PC |
| Motherboard chipset | AMD B840 |
| Audio chip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 |
| Moederbord form factor | Micro ATX |
| Moederbord chipset familie | AMD |
| PC gezondheids monitor | FAN,Temperature,Voltage,Water cooling |
| Verpakking | |
|---|---|
| Breedte verpakking | 265 |
| Diepte verpakking | 265 |
| Hoogte verpakking | 54 |
| Gewicht verpakking | 1129.4 |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 1 |
| Prestatie | |
|---|---|
| DirectX version | 12.0 |
| Warranty period | 3 |
| HDCP | Ja |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Maximum aantal HDD's per behuizing | 4 |
| Number of storage drives supported | 6 |
| RAID support | Ja |
| RAID levels | 0,1,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| Number of SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| Voorpaneel-connector | Ja |
| Aantal CPU-ventilatoraansluitingen | 2 |
| Aansluitingen voor behuizingsventilatoren | 2 |
| EPS power connector (8-pin) | Ja |
| Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
| RGB LED-aansluitrail | Ja |
| Aantal RGB LED-pinheaders | 3 |
| Aantal waterpompaansluitingen | 2 |

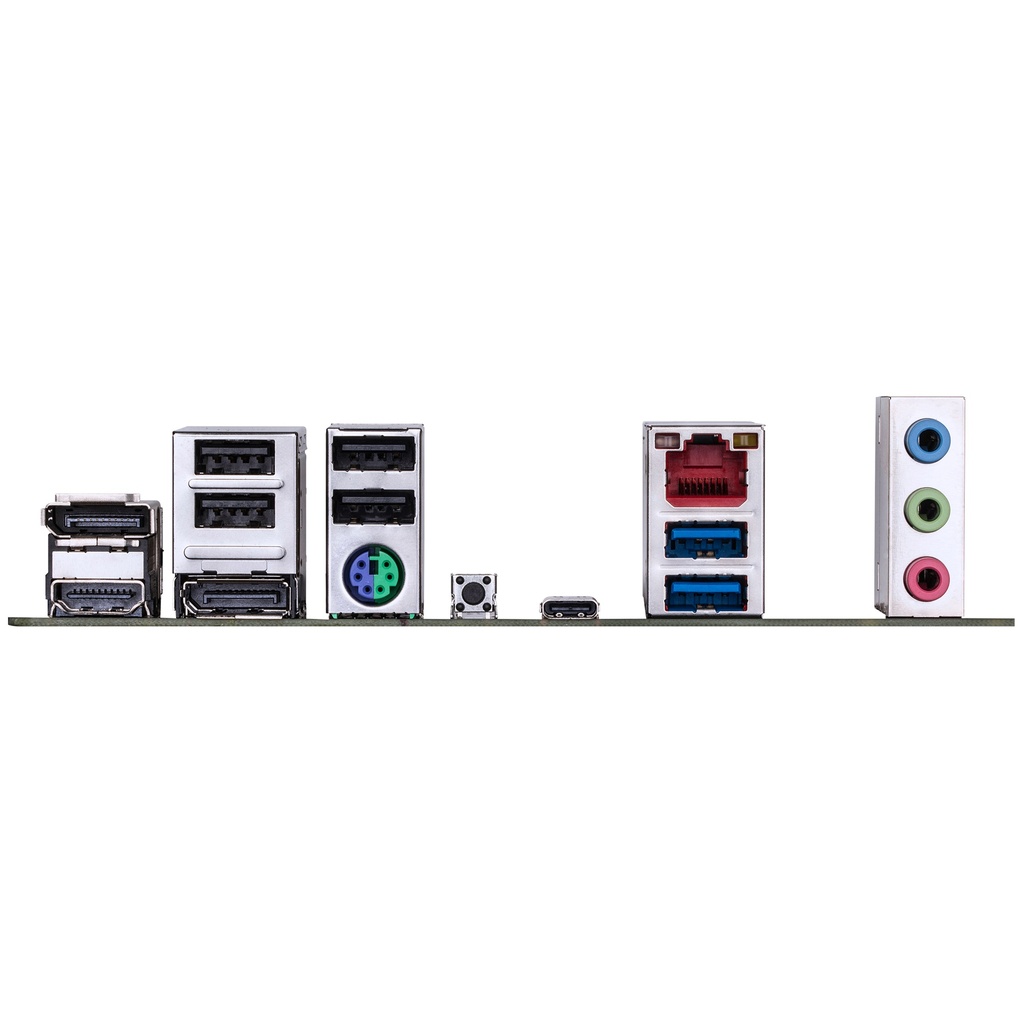

| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Ja |
| PS/2 poort(en) | 1 |
| Lijningang | Ja |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Ja |
| Versie Desktop Management Interface (DMI) | 2.7 |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
| Uitbreidingsmodules | |
|---|---|
| Aantal M.2 (M) slots | 2 |
| 1e M.2 grootste sleutelgrootte | 2580 |
| 1e M.2 hoogste PCI Express-generatie | 4.0 |
| 2e M.2 grootste sleutelgrootte | 25110 |
| 2e M.2 hoogste PCI Express-generatie | 4.0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
