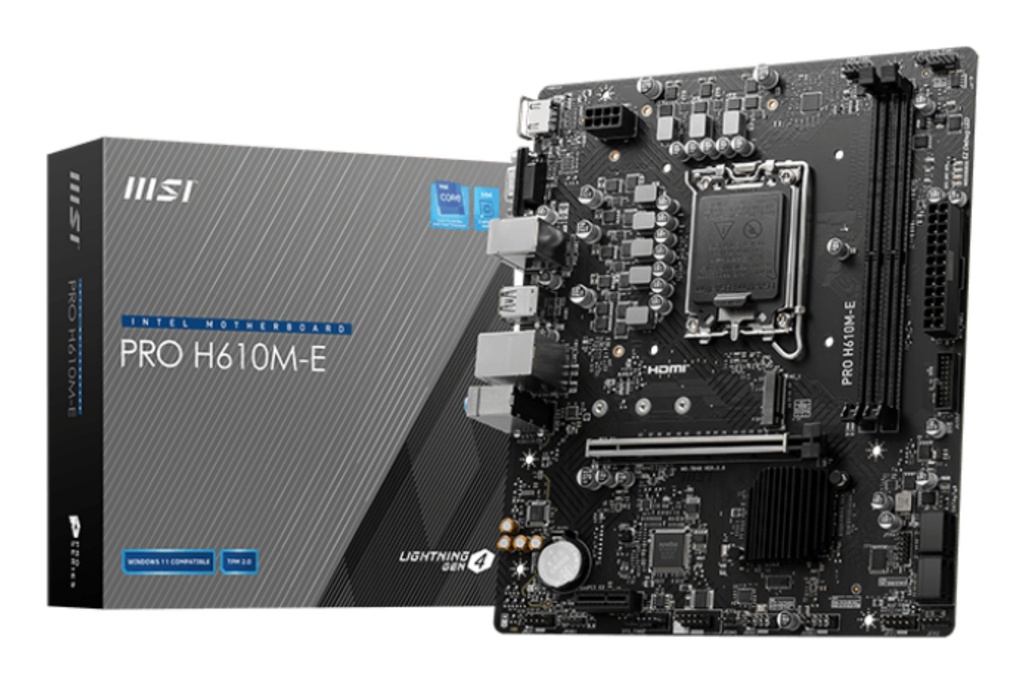

MSI PRO H610M-E | Socket LGA 1700 | Intel H610 | 2xDDR5 | Micro-ATX | Moederbord

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

  • Ethernet LAN
  • Ethernet interface type
  • Wi-Fi
  • Processor socket
  • Supported processor sockets
  • Supported memory clock speeds
  • ATX Power connector (24-pin)
  • BIOS type
  • RAID support
  • EPS power connector (8-pin)
  • ACPI version
  • Thunderbolt headers
  • Supported memory module capacities
  • PCI Express x1 (Gen 3.x) slots
  • Processor manufacturer
  • Compatible processor series
  • Supported memory types
  • Number of memory slots
  • Memory slots type
  • Memory channels
  • ECC сompatibility
  • Maximum internal memory
  • Supported storage drive types
  • Supported storage drive interfaces
  • RAID levels
  • USB 2.0 connectors
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • Number of SATA III connectors
  • Audio connector
  • Front panel audio connector
  • CPU fan connector
  • Number of chassis fan connectors
  • Number of COM connectors
  • USB 2.0 ports quantity
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • Ethernet LAN (RJ-45) ports
  • PS/2 ports quantity
  • VGA (D-Sub) ports quantity
  • HDMI ports quantity
  • HDMI version
  • Headphone outputs
  • Microphone in
  • Motherboard chipset
  • Audio output channels
  • Component for
  • Motherboard form factor
  • Motherboard chipset family
  • Cooling type
  • Power source type
  • Windows operating systems supported
  • PCI Express x16 (Gen 4.x) slots
  • BIOS memory size
  • Width
  • Depth
  • Cables included
  • Drivers included
Add to cart
Add to wishlist
Price
70.04 € 70.04 €

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Processor
Processor socket LGA 1700
Supported processor sockets LGA 1700
Processor manufacturer Intel
Compatible processor series Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G
Geheugen
Supported memory clock speeds 5600
Supported memory module capacities 4GB,8GB,16GB,32GB
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility non-ECC
Maximum internal memory 96
Netwerk
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi N
Gewicht en omvang
Width 200
Depth 236.16
Inhoud van de verpakking
Cables included SATA
Drivers included Y
Kenmerken
Motherboard chipset Intel H610
Audio output channels 7.1
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Cooling type Active
Power source type ATX
Windows operating systems supported Windows 10,Windows 11
Opslag-controllers
RAID support Y
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
RAID levels 0,1,5,10
Interne aansluitingen
ATX Power connector (24-pin) Y
EPS power connector (8-pin) Y
Thunderbolt headers 2
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Audio connector Y
Front panel audio connector Y
CPU fan connector Y
Number of chassis fan connectors 2
Number of COM connectors 2
Aansluitingen achterzijde
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 1.4
Headphone outputs 2
Microphone in Y
BIOS
BIOS type UEFI AMI
ACPI version 6.4
BIOS memory size 256
Uitbreidingsmodules
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
