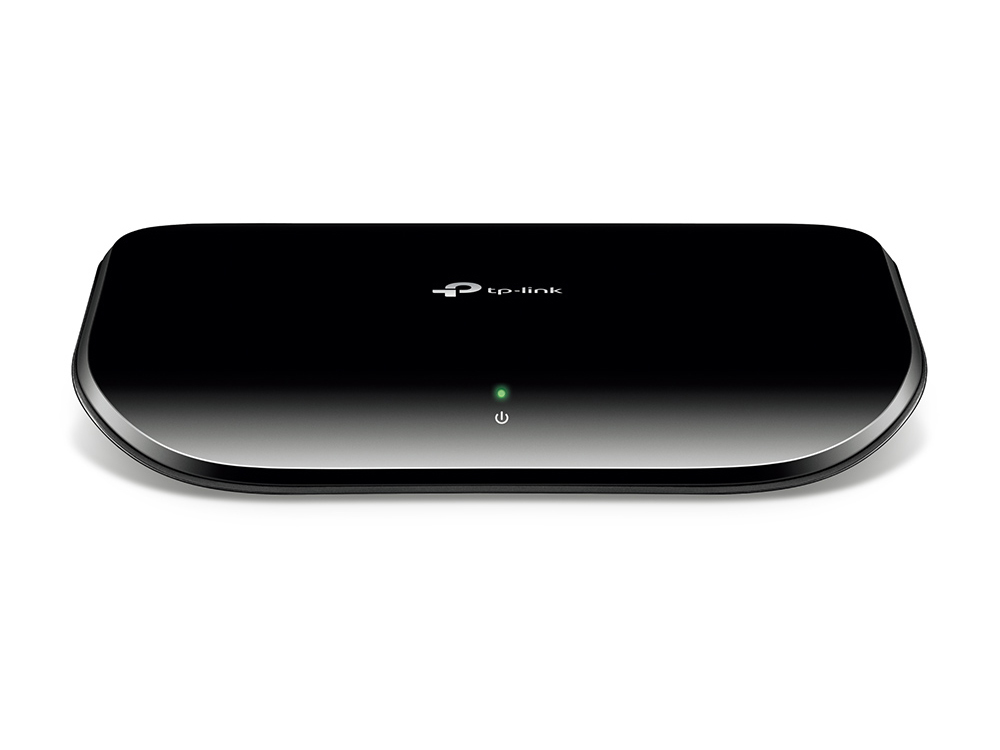

TP-Link TL-SG1005D | Unmanaged | Gigabit Ethernet (10/100/1000 Mbps)

What This Product Does
The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
  • Switch type
  • Full duplex
  • Auto-negotiation
  • Jumbo frames
  • Power over Ethernet (PoE)
  • Store-and-forward
  • Auto MDI/MDI-X
  • MAC address auto-aging supported
  • Basic switching RJ-45 Ethernet ports quantity
  • Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (copper) ports quantity
  • Power connector
  • Networking standards
  • Half duplex
  • Flow control support
  • MAC address auto-learning supported
  • Supported data transfer rates
  • Switching capacity
  • MAC address table
  • Maximum data transfer rate
  • Jumbo frames support
  • Rack mounting
  • Product colour - Black
  • LED indicators
  • Power source
  • Input current
  • Input voltage
  • Power consumption (max)
  • Operating temperature (T-T)
  • Storage temperature (T-T)
  • Operating relative humidity (H-H)
  • Storage relative humidity (H-H)
  • Heat dissipation
  • Width
  • Depth
  • Height
  • Quick start guide
  • Package width
  • Package depth
  • Package height
  • Package weight
Add to wishlist
Price
18.25 € 18.25 €

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design
Rack mounting N
Product colour Black
LED indicators Y
Netwerk
Full duplex Y
Auto-negotiation Y
Auto MDI/MDI-X Y
MAC address auto-aging supported Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Half duplex Y
Flow control support Y
MAC address auto-learning supported Y
Poorten & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
Energie
Power source DC
Input current 0.6
Input voltage 9
Power consumption (max) 2.41
Gewicht en omvang
Width 165
Depth 108
Height 28
Inhoud van de verpakking
Quick start guide Y
Eisen aan de omgeving
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Heat dissipation 8.22
Verpakking
Package width 145
Package depth 108
Package height 85
Package weight 240
Beheerfuncties
Switch type Unmanaged
Data-uitwisseling
Jumbo frames 15000
Store-and-forward Y
Supported data transfer rates 10/100/1000 Mbit/s
Switching capacity 10
MAC address table 8000
Maximum data transfer rate 1
Jumbo frames support Y
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
