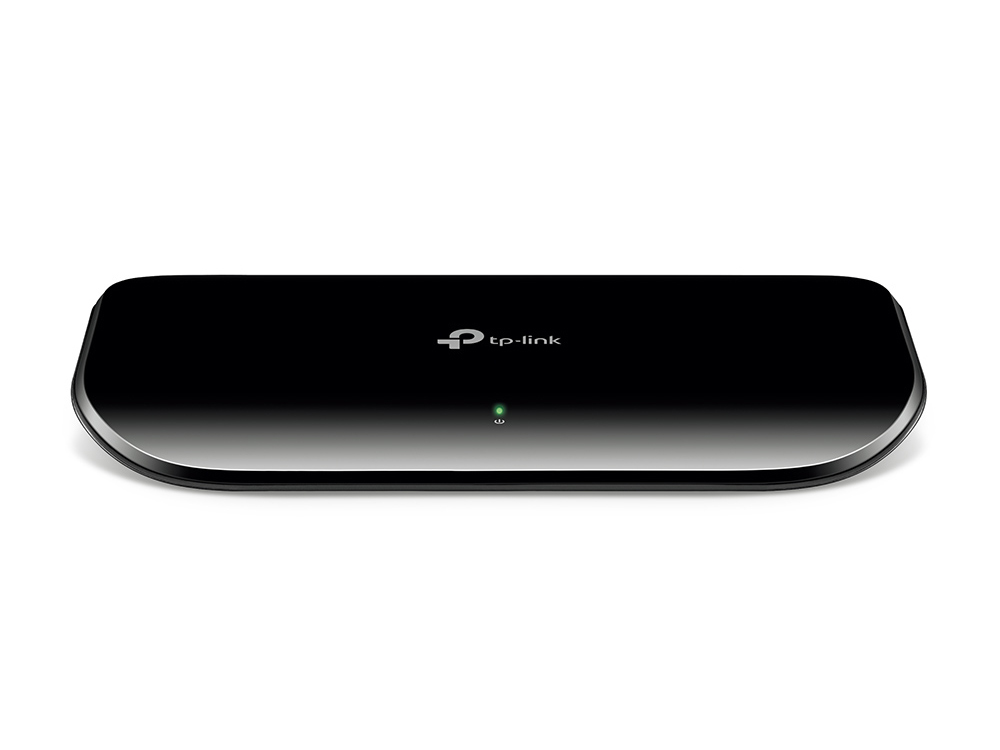

TP-Link TL-SG1008D | 8-Port Gigabit Ethernet Desktop Switch

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
  • Switch type
  • 10G support
  • Auto-negotiation
  • Jumbo frames
  • Power over Ethernet (PoE)
  • Store-and-forward
  • Auto MDI/MDI-X
  • Basic switching RJ-45 Ethernet ports quantity
  • Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (copper) ports quantity
  • Power connector
  • Networking standards
  • Copper ethernet cabling technology
  • Cable types supported
  • Flow control support
  • Ethernet LAN data rates
  • Switching capacity
  • MAC address table
  • Jumbo frames support
  • Packet buffer memory
  • Rack mounting
  • Stackable
  • Product colour - Black
  • LED indicators
  • Wall mountable
  • Maximum cable length
  • Fanless
  • Power source
  • Power supply included
  • AC input voltage
  • AC input frequency
  • DC input voltage
  • Input current
  • Power consumption (max)
  • Operating temperature (T-T)
  • Storage temperature (T-T)
  • Operating relative humidity (H-H)
  • Storage relative humidity (H-H)
  • Heat dissipation
  • Width
  • Depth
  • Height
  • Cables included
  • User guide
  • AC adapter included
  • Package type
  • Package width
  • Package depth
  • Package height
  • Package weight
  • Sustainability compliance
  • Compliance certificates
  • Harmonized System (HS) code
Add to wishlist
Price
27.20 € 27.20 €

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Design
Rack mounting N
Stackable N
Product colour Black
LED indicators Y
Wall mountable Y
Netwerk
10G support N
Auto-negotiation Y
Auto MDI/MDI-X Y
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Cable types supported Cat3,Cat4,Cat5,Cat5e
Flow control support Y
Ethernet LAN data rates 10,100,480,800,1000
Poorten & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
Power connector DC-in jack
Energie
Power source DC
Power supply included Y
AC input voltage 100 - 240
AC input frequency 50/60
DC input voltage 9
Input current 0.6
Power consumption (max) 3.53
Gewicht en omvang
Width 180
Depth 90
Height 25.5
Inhoud van de verpakking
Cables included AC
User guide Y
Eisen aan de omgeving
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Heat dissipation 15.8
Certificaten
Compliance certificates CE,Federal Communications Commission (FCC),RoHS
Duurzaamheid
Sustainability compliance Y
Verpakking
AC adapter included Y
Package type Box
Package width 110
Package depth 185
Package height 85
Package weight 300
Logistieke gegevens
Harmonized System (HS) code 85176990
Prestatie
Maximum cable length 100
Fanless Y
Beheerfuncties
Switch type Unmanaged
Data-uitwisseling
Jumbo frames 15000
Store-and-forward Y
Switching capacity 16
MAC address table 4000
Jumbo frames support Y
Packet buffer memory 2
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
