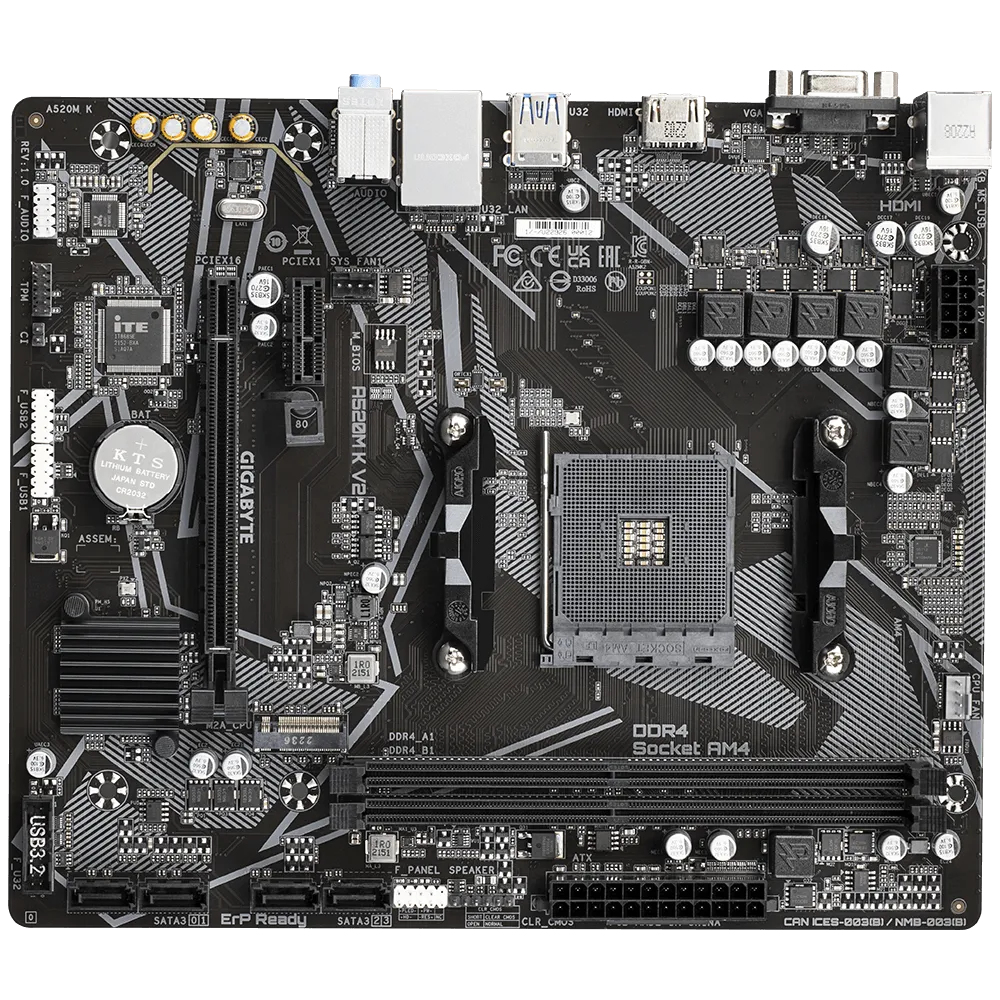

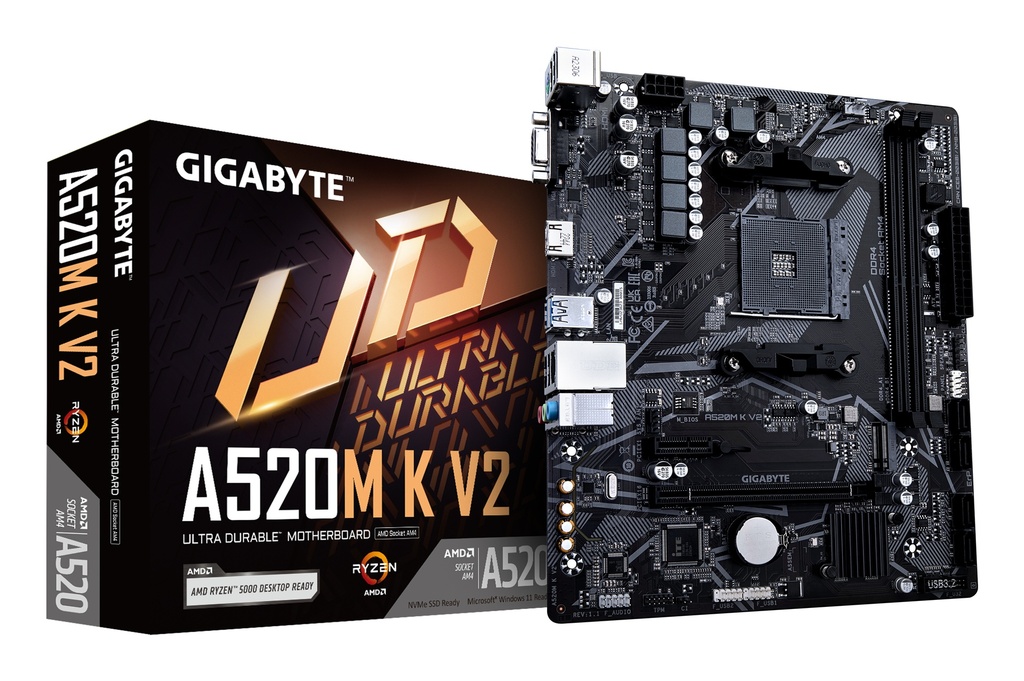

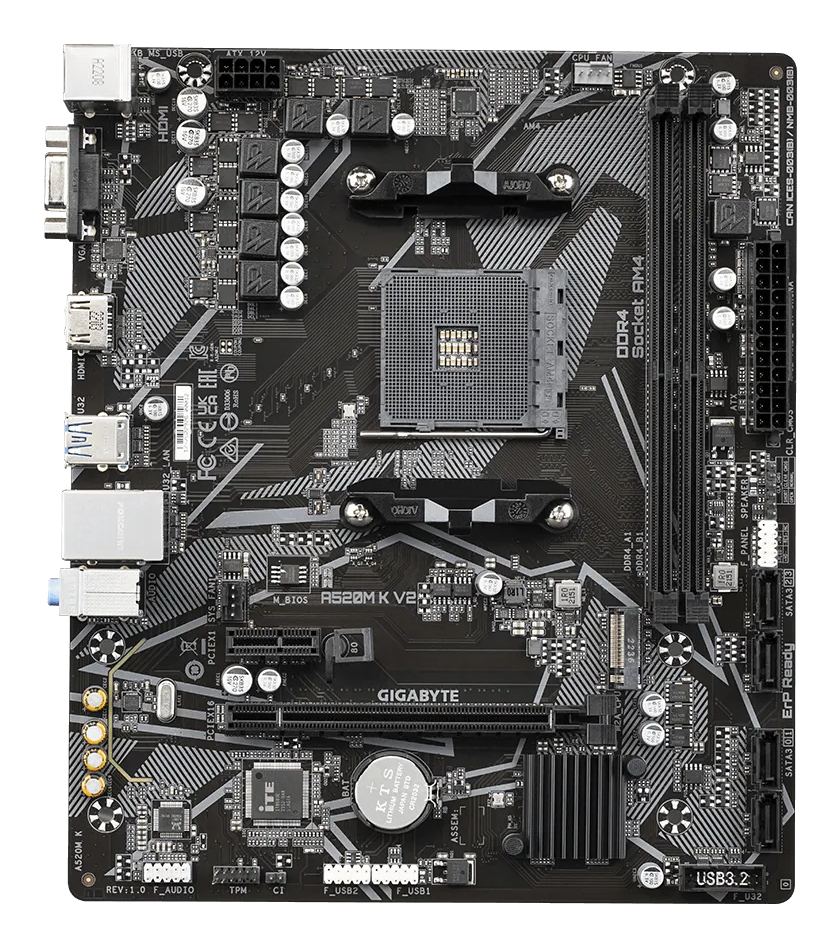

GIGABYTE A520M K V2 moederbord AMD A520 Socket AM4 micro ATX

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
  • Ethernet LAN
  • Ethernet interface type
  • Wi-Fi
  • Processor socket
  • Supported processor sockets
  • Supported memory clock speeds
  • ATX Power connector (24-pin)
  • TPM connector
  • 12V power connector
  • BIOS type
  • HDCP
  • Supported memory clock speed (max)
  • RAID support
  • EPS power connector (8-pin)
  • PC health monitoring
  • BIOS memory size
  • ACPI version
  • Clear CMOS jumper
  • Desktop Management Interface (DMI) version
  • System Management BIOS (SMBIOS) version
  • Lithium weight per battery
  • PCI Express x1 slots
  • PCI Express x16 slots
  • Processor manufacturer
  • Compatible processor series
  • Supported memory types
  • Number of memory slots
  • Memory slots type
  • Memory channels
  • ECC сompatibility
  • Maximum internal memory
  • Unbuffered memory
  • Supported storage drive types
  • Supported storage drive interfaces
  • Number of storage drives supported
  • RAID levels
  • Parallel processing technology support
  • Maximum resolution
  • USB 2.0 connectors
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • Number of SATA III connectors
  • Front panel audio connector
  • Front panel connector
  • CPU fan connector
  • Chassis intrusion connector
  • USB 2.0 ports quantity
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • Ethernet LAN (RJ-45) ports
  • PS/2 ports quantity
  • VGA (D-Sub) ports quantity
  • HDMI ports quantity
  • HDMI version
  • Headphone outputs
  • Microphone in
  • USB connector type
  • Motherboard chipset
  • Audio output channels
  • Component for
  • Motherboard form factor
  • Motherboard chipset family
  • Windows operating systems supported
  • Number of M.2 (M) slots
  • Country of origin
  • Products per shipping (inner) case
  • Battery weight
  • Number of battery cells
  • Battery technology
  • Battery type
  • Package width
  • Package depth
  • Package height
  • Package weight
  • Width
  • Depth
  • Height
  • Cables included
  • Batteries included
  • Bundled software
  • Warranty period
Aan winkelmandje toevoegen
Toevoegen aan verlanglijst
Prijs
61,59 € 61,59 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen

Specificaties

Processor
Processor socket Socket AM4
Supported processor sockets Socket AM4
Processor manufacturer AMD
Compatible processor series AMD Ryzen 3000 Series,AMD Ryzen 5000 Series
Geheugen
Supported memory clock speeds 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100
Supported memory clock speed (max) 5100
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & non-ECC
Maximum internal memory 64
Unbuffered memory Ja
Grafisch
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160
Netwerk
Ethernet LAN Ja
Ethernet interface type Gigabit Ethernet
Wi-Fi Geen
Accu/Batterij
Lithium weight per battery 0.07
Battery weight 3
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Gewicht en omvang
Width 233
Depth 198
Height 35
Inhoud van de verpakking
Cables included SATA
Batteries included Ja
Bundled software Norton Internet Security
Kenmerken
PC health monitoring FAN,Temperature,Voltage
Motherboard chipset AMD A520
Audio output channels 7.1
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family AMD
Windows operating systems supported Windows 10 x64,Windows 11 x64
Verpakking
Package width 265
Package depth 235
Package height 52
Package weight 675
Logistieke gegevens
Country of origin China
Products per shipping (inner) case 1
Prestatie
HDCP Ja
Technische details
Warranty period 3
Opslag-controllers
RAID support Ja
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
Number of storage drives supported 5
RAID levels 0,1,10
Interne aansluitingen
ATX Power connector (24-pin) Ja
TPM connector Ja
12V power connector Ja
EPS power connector (8-pin) Ja
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Front panel audio connector Ja
Front panel connector Ja
CPU fan connector Ja
Chassis intrusion connector Ja

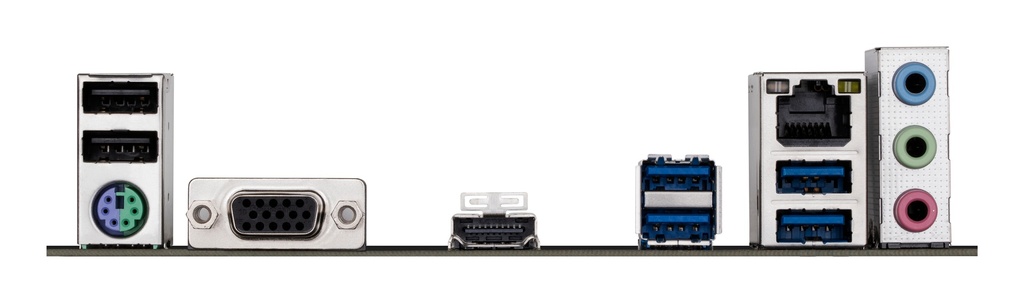

Aansluitingen achterzijde
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 3
Microphone in Ja
USB connector type USB Type-A
BIOS
BIOS type UEFI AMI
BIOS memory size 128
ACPI version 5.0
Clear CMOS jumper Ja
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Uitbreidingsmodules
PCI Express x1 slots 1
PCI Express x16 slots 1
Number of M.2 (M) slots 1
