CUTTING EDGE TECHNOLOGIES AND PERFORMANCE

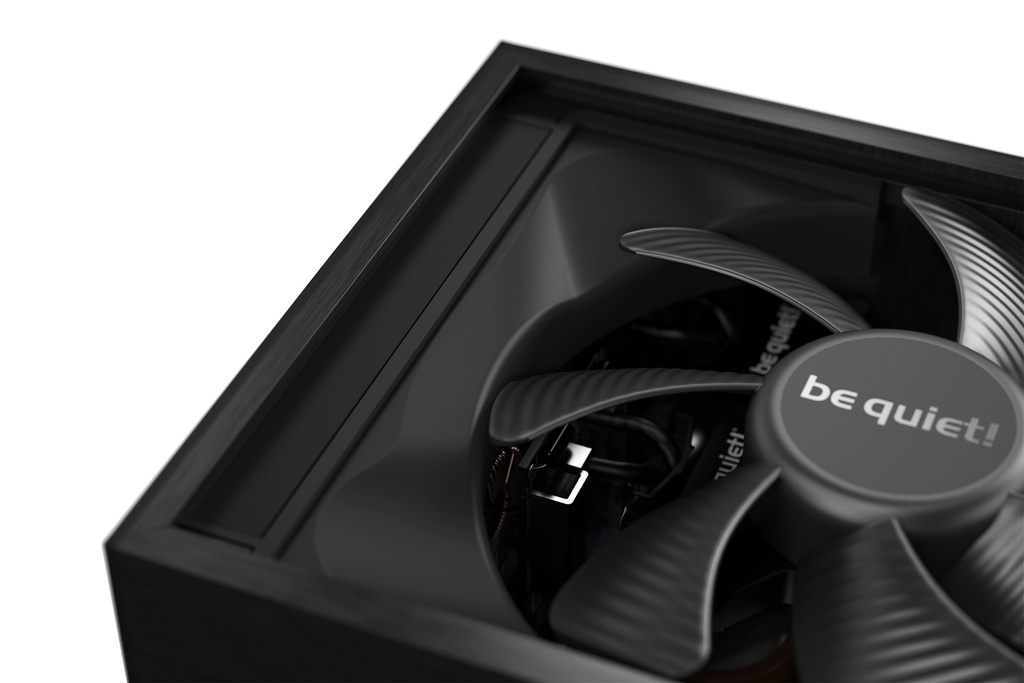

The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| Number of fans | 1 |
| Cooling type | Active |
| Fan diameter | 135 |
| Poorten & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 600 |
| Number of SATA power connectors | 16 |
| Lengte SATA-stroomkabel | 500,600,750,800,900,950,1050 |
| Lengte stroomkabel randapparaat (Molex) | 600,750,900,1050 |
| PCI Express power connectors (6+2 pin) | 6 |
| Lengte PCI Express-stroomkabel | 600 |
| Lengte CPU-stroomkabel | 700 |

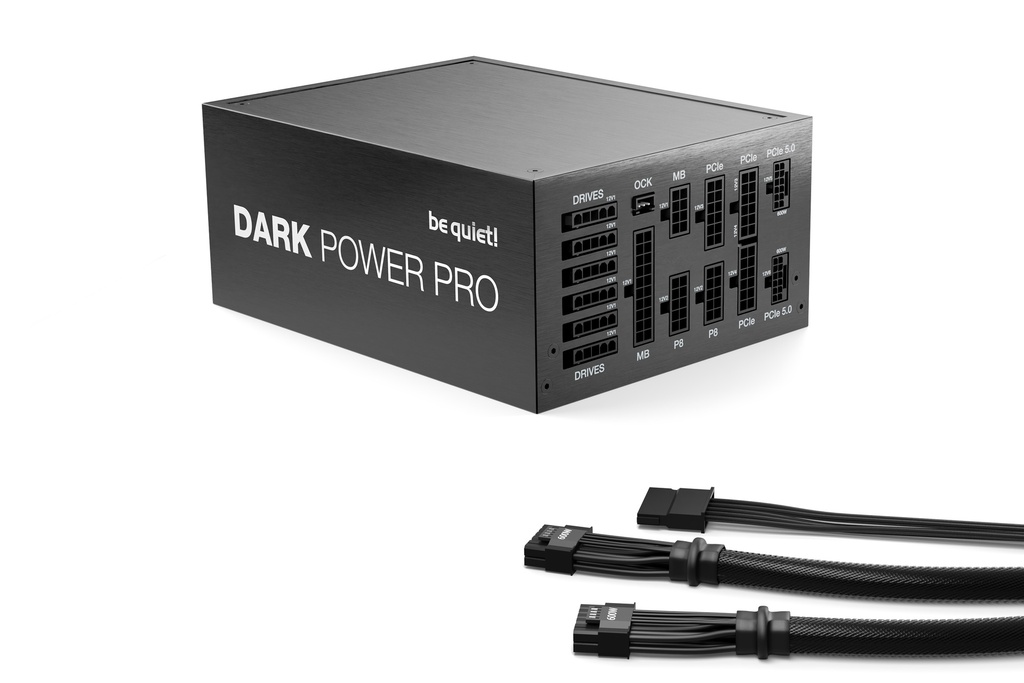

| Cabling type | Fully-Modular |
| EPS-voedingsconnector (4+4 pin) | Ja |
| ATX power connector (20+4 pin) | Ja |
| PCI Express connector | Ja |
| Aantal PATA power aansluiters | 5 |
| Energie | |
|---|---|
| Total power | 1600 |
| AC input voltage | 115 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 15 - 9 |
| 80 PLUS certification | 80 PLUS Titanium |
| Piekvermogen | 1700 |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 |
| Combined power (+12V) | 1600 |
| Combined power (+5V) | 150 |
| Combined power (-12V) | 6 |
| Combined power (+5Vsb) | 17.5 |
| Max output current (+3.3V) | 25 |
| Max output current (+12V1) | 40 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.5 |
| Max output current (+5Vsb) | 3.5 |
| Hold time | 18 |
| Max output current (+12V2) | 40 |
| Max output current (+12V3) | 45 |
| Max output current (+12V4) | 45 |
| Gewicht en omvang | |
|---|---|
| Breedte | 150 |
| Diepte | 200 |
| Hoogte | 86 |
| Gewicht | 2440 |
| Inhoud van de verpakking | |
|---|---|

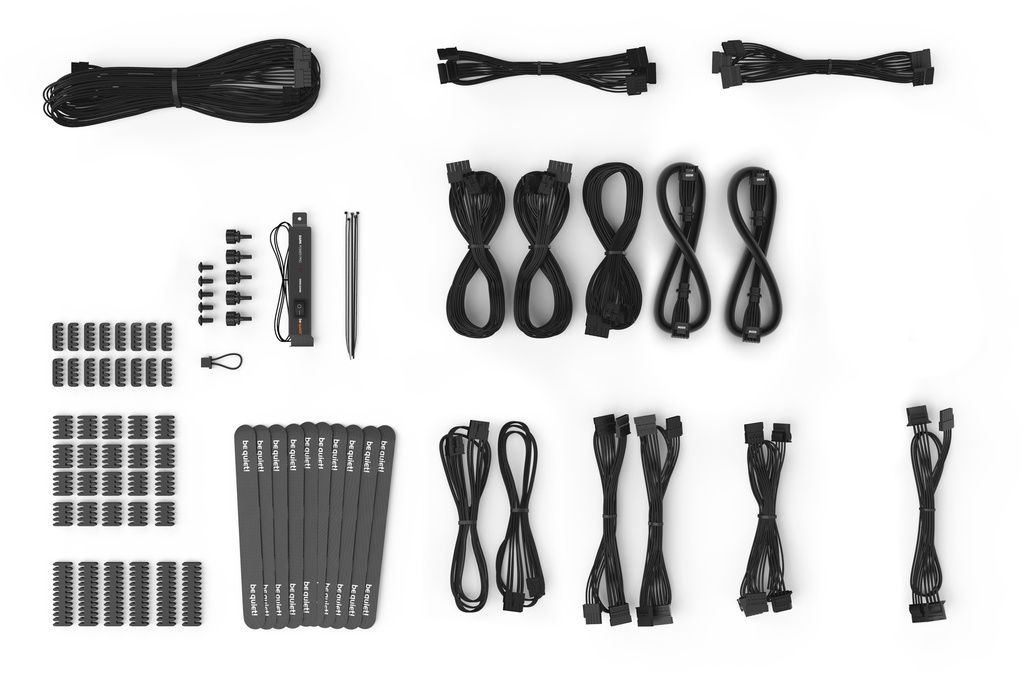

| Meegeleverde kabels | CPU,PCIe,Peripheral (Molex),SATA |
| Inclusief kabelbinder(s) | Ja |
| Kenmerken | |
|---|---|
| Efficientie | 94.5 |
| Geluidsniveau | 31.1 |
| Stroomspanning bescherming | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
| Certificaten | |
|---|---|
| Certificaten van naleving | CCC,CE,Federal Communications Commission (FCC),RoHS,UKCA,WEEE |
| Duurzaamheid | |
|---|---|
| Duurzaamheidscertificaten | ENERGY STAR,ErP,Triman |
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 253 |
| Diepte verpakking | 417 |
| Hoogte verpakking | 152 |
| Gewicht verpakking | 6900 |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 2 |
| Shipping (inner) case width | 325 |
| Shipping (inner) case length | 440 |
| Shipping (inner) case height | 283 |
| Shipping (inner) case net weight | 14600 |
| Prestatie | |
|---|---|
| Warranty period | 10 |
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Interne aansluitingen | |
|---|---|
| EPS power connector (8-pin) | Ja |
| Muis | |
|---|---|
| Bedoeld voor | PC |
