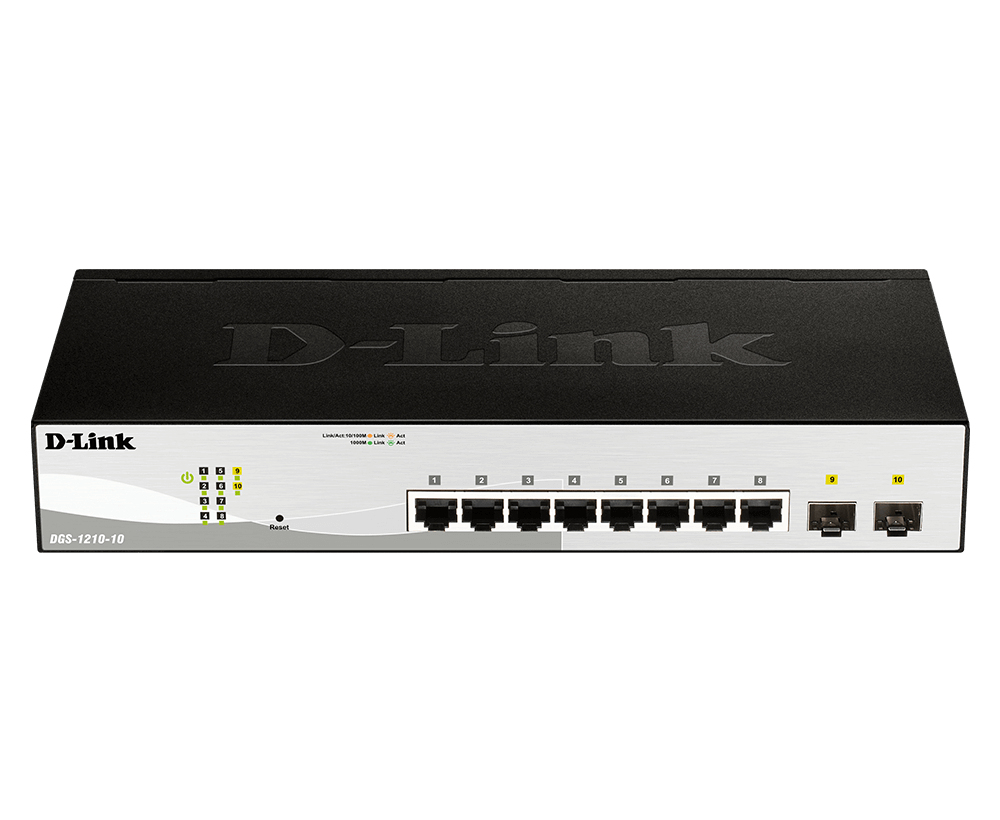

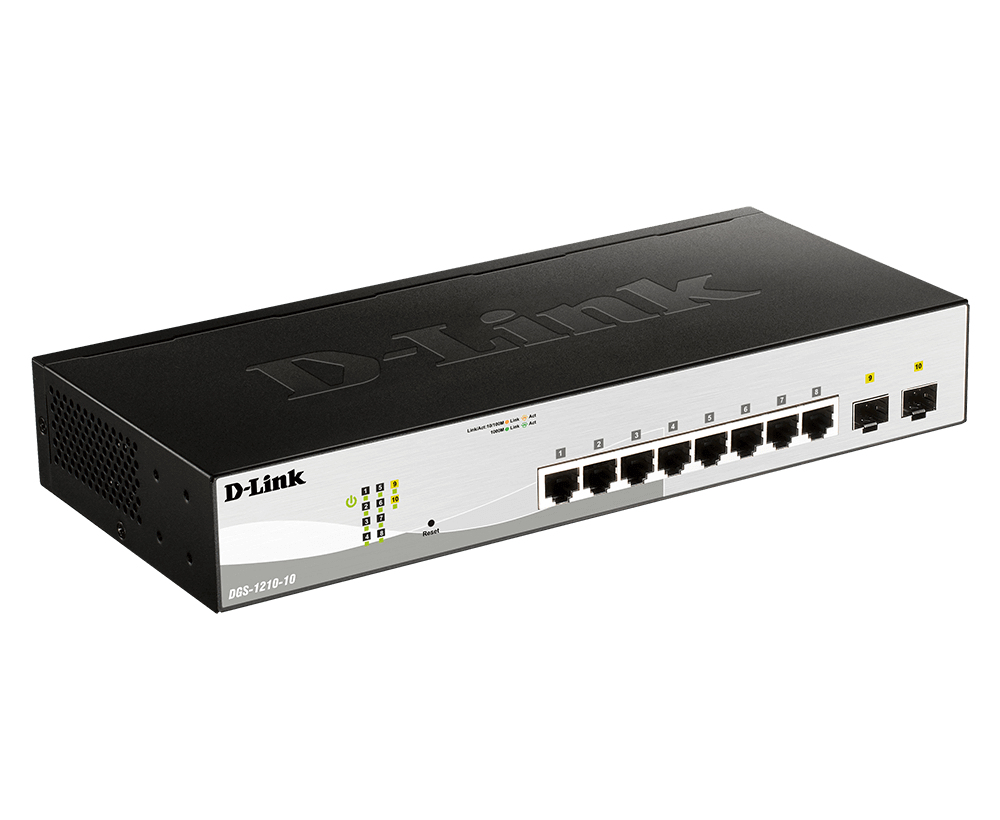

D-Link DGS-1210-10 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Zwart, Grijs

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

This product is compatible with Nuclias Connect
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
  • Switch type
  • Full duplex
  • Spanning tree protocol
  • Auto-negotiation
  • Jumbo frames
  • Access Control List (ACL)
  • IGMP snooping
  • Power over Ethernet (PoE)
  • System event log
  • Port mirroring
  • Head-of-line (HOL) blocking
  • Store-and-forward
  • Auto MDI/MDI-X
  • Flash memory
  • Mean time between failures (MTBF)
  • Switch layer
  • Quality of Service (QoS) support
  • Web-based management
  • ARP inspection
  • Configuring Location Settings (CLI)
  • MIB support
  • Basic switching RJ-45 Ethernet ports quantity
  • Basic switching RJ-45 Ethernet ports type
  • SFP module slots quantity
  • Power connector
  • Networking standards
  • Copper ethernet cabling technology
  • Flow control support
  • Link aggregation
  • Broadcast storm control
  • VLAN support
  • Number of VLANs
  • Switching capacity
  • Forwarding rate
  • MAC address table
  • Jumbo frames support
  • Packet buffer memory
  • DHCP features
  • MAC address filtering
  • Loop protection
  • Multicast support
  • Rack mounting
  • Stackable
  • Form factor
  • Product colour - Black,Grey
  • LED indicators
  • Memory type
  • Internal memory
  • Noise level
  • Power source
  • Power supply included
  • AC input voltage
  • AC input frequency
  • Power consumption (max)
  • Operating temperature (T-T)
  • Storage temperature (T-T)
  • Operating relative humidity (H-H)
  • Storage relative humidity (H-H)
  • Heat dissipation
  • Width
  • Depth
  • Height
  • Weight
Toevoegen aan verlanglijst
Prijs
143,41 € 143,41 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen

Specificaties

Design
Rack mounting Ja
Stackable Ja
Form factor 1U
Product colour Black,Grey
LED indicators Ja
Netwerk
Full duplex Ja
Spanning tree protocol Ja
Auto-negotiation Ja
Port mirroring Ja
Head-of-line (HOL) blocking Ja
Auto MDI/MDI-X Ja
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Flow control support Ja
Link aggregation Ja
Broadcast storm control Ja
VLAN support Ja
Number of VLANs 256
Poorten & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Power connector AC-in jack
Energie
Power source AC
Power supply included Ja
AC input voltage 100 - 240
AC input frequency 50/60
Power consumption (max) 6.33
Beveiliging
Access Control List (ACL) Ja
IGMP snooping Ja
DHCP features DHCP client
MAC address filtering Ja
Loop protection Ja
Gewicht en omvang
Width 280
Depth 126
Height 44
Weight 980
Eisen aan de omgeving
Operating temperature (T-T) -5 - 50
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Heat dissipation 21.59
Prestatie
Flash memory 32
Mean time between failures (MTBF) 1380058
Memory type DDR3-SDRAM
Internal memory 128
Noise level 0
Beheerfuncties
Switch type Managed
System event log Ja
Switch layer L2
Quality of Service (QoS) support Ja
Web-based management Ja
ARP inspection Ja
Configuring Location Settings (CLI) Ja
MIB support Ja
Data-uitwisseling
Jumbo frames 10000
Store-and-forward Ja
Switching capacity 20
Forwarding rate 14.88
MAC address table 8000
Jumbo frames support Ja
Packet buffer memory 4.1
Power over Ethernet (PoE)
Power over Ethernet (PoE) Geen
Multicast-functies
Multicast support Ja
