Fast and easy connection with USB

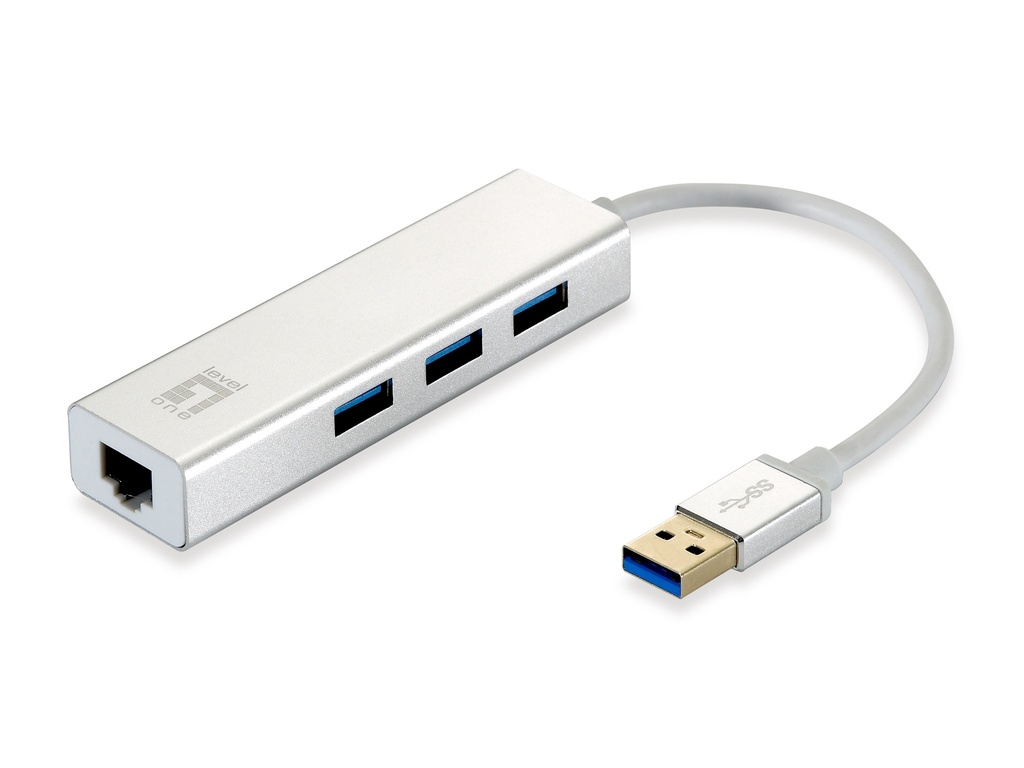

The LevelOne USB Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0503 easily does the job, all through your USB port. The USB-0503 also combines a regular USB hub. So you can connect external USB peripherals, such as a MP3 player, digital camera, printer or pen drive. The USB-0503 establishes a direct point-to-point contact between the hub and the adapter that\\\'s plugged into your PC.
Reliable, efficient and standards compliant
The USB-0503 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
The LevelOne USB Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0503 easily does the job, all through your USB port. The USB-0503 also combines a regular USB hub. So you can connect external USB peripherals, such as a MP3 player, digital camera, printer or pen drive. The USB-0503 establishes a direct point-to-point contact between the hub and the adapter that\\\'s plugged into your PC.
Reliable, efficient and standards compliant
The USB-0503 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Silver,White |
| Internal | Geen |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet LAN data rates | 10,100,1000 |
| Supported network protocols | IPv4/IPv6 |
| Wake-on-LAN ready | Ja |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Full duplex | Ja |
| Flow control support | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000BaseT(X) |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Interface | Ethernet |
| USB ports quantity | 3 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Host interface | USB |
| Aantal USB 3.2-hubpoorten type A (3.1 Gen 1) | 3 |
| Energie | |
|---|---|
| Voltage | 5 |
| Input current | 0.9 |
| USB powered | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 27 |
| Diepte | 16 |
| Hoogte | 95 |
| Gewicht | 42 |
| Inhoud van de verpakking | |
|---|---|
| Snelle installatiehandleiding | Ja |
| Kenmerken | |
|---|---|
| Country of origin | China |
| Hot-swap | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -5 - 80 |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 85 |
| Luchtvochtigheid bij opslag | 0 - 85 |
| Certificaten | |
|---|---|
| Certificering | CE |
| Verpakking | |
|---|---|
| Breedte verpakking | 90 |
| Diepte verpakking | 21 |
| Hoogte verpakking | 165 |
| Gewicht verpakking | 60 |
| Package type | Box |
| Logistieke gegevens | |
|---|---|
| Hoeveelheid per (buitenste) hoofdverpakking | 80 |
| Master (outer) case gross weight | 5500 |
| Master (outer) case width | 33.5 |
| Master (outer) case length | 20 |
| Master (outer) case height | 44 |
| Minimale systeemeisen | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Ergonomie | |
|---|---|
| Plug and Play | Ja |
