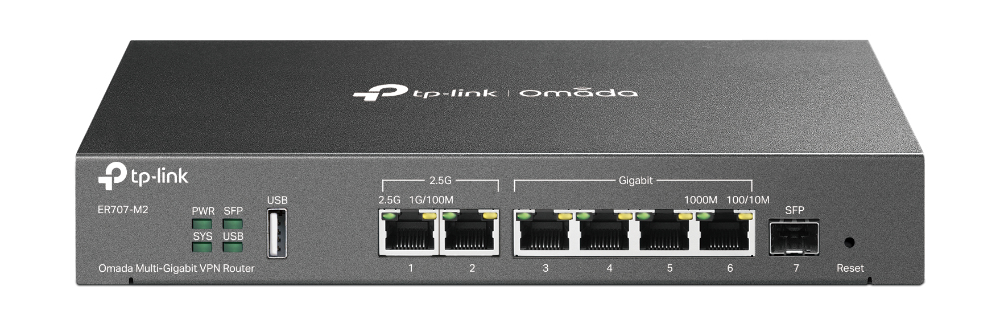

Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| LED-indicatoren | LAN,Link,Power,Speed,System,USB,WAN |
| Reset button | Ja |
| Housing material | Steel |
| Wall mountable | Ja |
| Geheugen | |
|---|---|
| Internal memory type | DDR4 |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x |
| VLAN support | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet |
| Op beleid gebaseerde routering | Ja |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| Aantal WAN/Ethernet LAN-poorten | 6 |
| Aantal WAN-poorten | 1 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Energie | |
|---|---|
| Voltage | 12 |
| Power source type | DC |
| Output current | 1.5 |
| Beveiliging | |
|---|---|
| Network address translation (NAT) | Ja |
| Access Control List (ACL) | Ja |
| Security algorithms | 3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1,SNMP,SNMPv2,SNMPv3 |
| URL- filtering | Ja |
| ICMP-aanvalspreventie | Ja |
| VPN tunnels quantity | 66 |
| DMZ support | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 226 |
| Diepte | 131 |
| Hoogte | 35 |
| Inhoud van de verpakking | |
|---|---|
| Snelle installatiehandleiding | Ja |
| AC adapter included | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 242 |
| Diepte verpakking | 323 |
| Hoogte verpakking | 73 |
| Gewicht verpakking | 1100 |
| Minimale systeemeisen | |
|---|---|
| Mac operating systems supported | Ja |
| Linux operating systems supported | Ja |
| WAN-verbinding | |
|---|---|
| Ethernet WAN | Ja |
| SFP WAN | Ja |
| Beheerfuncties | |
|---|---|
| Web-based management | Ja |
| System event log | Ja |
| Protocollen | |
|---|---|
| DHCP server | Ja |
| Universal Plug and Play (UPnP) | Ja |
| DHCP client | Ja |
| Data-uitwisseling | |
|---|---|
| Static route | Ja |
