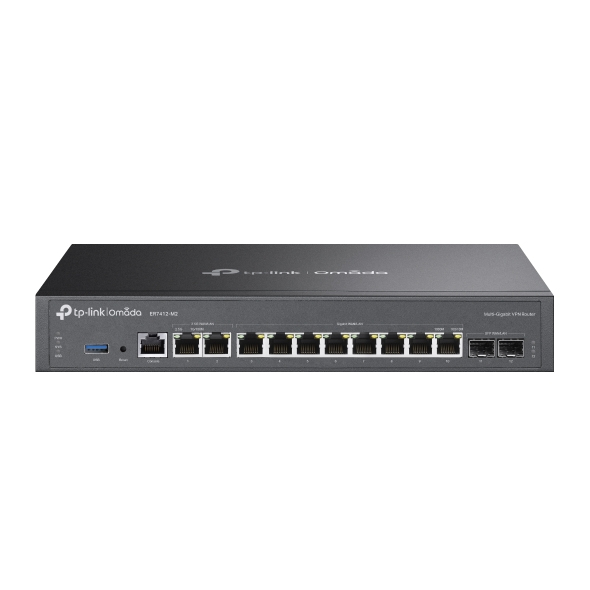

Omada Multi-Gigabit VPN Router
- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS
Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS
Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| Rack mounting | Ja |
| Reset button | Ja |
| Geheugen | |
|---|---|
| Internal memory | 1024 |
| Internal memory type | DDR4 |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| VLAN support | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 7 |
| Aantal WAN/Ethernet LAN-poorten | 2 |
| USB ports quantity | 1 |
| SFP module slots quantity | 2 |
| Aantal consolepoorten | 1 |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 18.5 |
| Beveiliging | |
|---|---|
| Network address translation (NAT) | Ja |
| Access Control List (ACL) | Ja |
| Security algorithms | 128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1,SHA-2,SHA-384,SHA-512 |
| URL- filtering | Ja |
| ICMP-aanvalspreventie | Ja |
| VPN tunnels quantity | 80 |
| DMZ support | Ja |
| DoS attack prevention | Ja |
| ARP-aanvalspreventie | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 294 |
| Diepte | 180 |
| Hoogte | 44 |
| Inhoud van de verpakking | |
|---|---|
| Meegeleverde kabels | AC,LAN (RJ-45) |
| Quick start guide | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 45 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC) |
| Prestatie | |
|---|---|
| Flash memory | 128 |
| Minimale systeemeisen | |
|---|---|
| Mac operating systems supported | Ja |
| Windows operating systems supported | Windows 10,Windows 11,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| Linux operating systems supported | Ja |
| WAN-verbinding | |
|---|---|
| Ethernet WAN | Ja |
| DSL WAN | Geen |
| SIM-kaartsleuf | Geen |
| 3G/4G USB modem compatibiliteit | Ja |
| SFP WAN | Ja |
| Beheerfuncties | |
|---|---|
| Web-based management | Ja |
| Protocollen | |
|---|---|
| DHCP server | Ja |
| Universal Plug and Play (UPnP) | Ja |
| Data-uitwisseling | |
|---|---|
| Static route | Ja |
