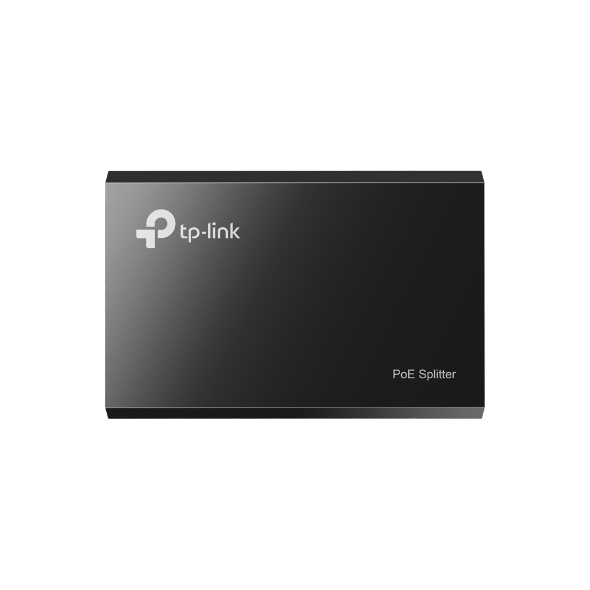

TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| LED-indicatoren | Power |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Cable types supported | Cat3,Cat5,Cat5e |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| Energie | |
|---|---|
| Input current | 1, 2 |
| Input voltage | 5, 9, 12 |
| Gewicht en omvang | |
|---|---|
| Breedte | 81 |
| Diepte | 52 |
| Hoogte | 24 |
| Inhoud van de verpakking | |
|---|---|
| Snelle installatiehandleiding | Ja |
| Number of products included | 1 |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificering | FCC, CE, RoHS |
| Verpakking | |
|---|---|
| Breedte verpakking | 165 |
| Diepte verpakking | 198 |
| Hoogte verpakking | 65 |
| Gewicht verpakking | 230 |
| Package type | Box |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Ergonomie | |
|---|---|
| Plug and Play | Ja |
