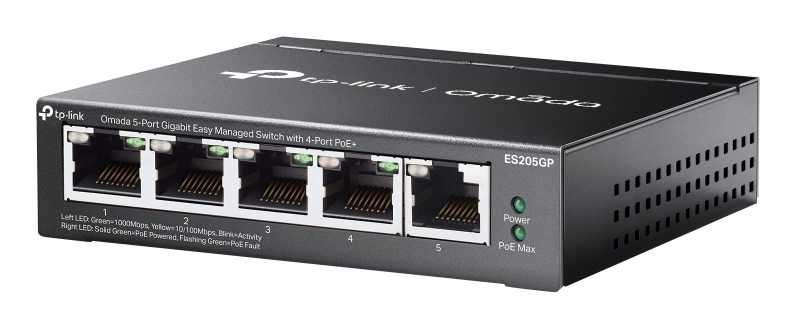

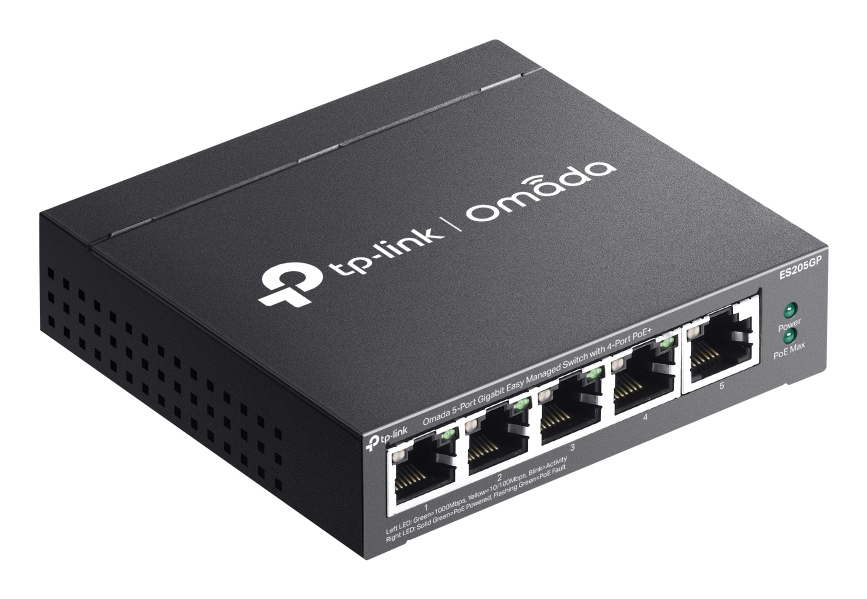

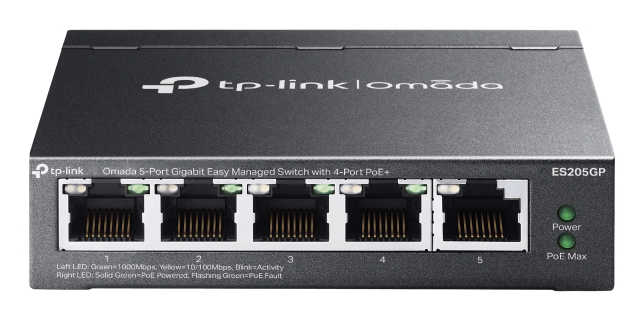

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

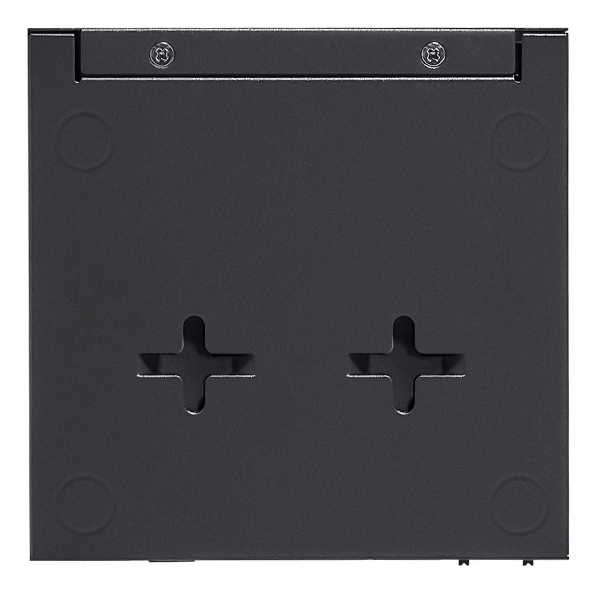

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| LED-indicatoren | Ja |
| Reset button | Ja |
| Wall mountable | Ja |
| Netwerk | |
|---|---|
| Link aggregation | Ja |
| Networking standards | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3at,IEEE 802.3x |
| 10G support | Geen |
| Flow control support | Ja |
| Auto-negotiation | Ja |
| VLAN support | Ja |
| Virtual LAN features | MTU VLAN,Port-based VLAN,Tagged VLAN |
| Port mirroring | Ja |
| Auto MDI/MDI-X | Ja |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Energie | |
|---|---|
| Power source | AC/DC |
| Power supply included | Ja |
| DC input voltage | 53.5 |
| Beveiliging | |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Ja |
| Loop protection | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 100 |
| Diepte | 98 |
| Hoogte | 25 |
| Inhoud van de verpakking | |
|---|---|
| User guide | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Verpakking | |
|---|---|
| Package type | Box |
| Prestatie | |
|---|---|
| Fanless | Ja |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Ja |
| Cloud-managed | Ja |
| Optische vezel | |
|---|---|
| Transmissie afstand (max) | 0.25 |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 10 |
| MAC address table | 8000 |
| Jumbo frames support | Ja |
| Jumbo frames | 15 |
| Forwarding rate | 7.4 |
| Packet buffer memory | 4 |
| Store-and-forward | Ja |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 65 |
| Power over Ethernet (PoE) ports quantity | 4 |
