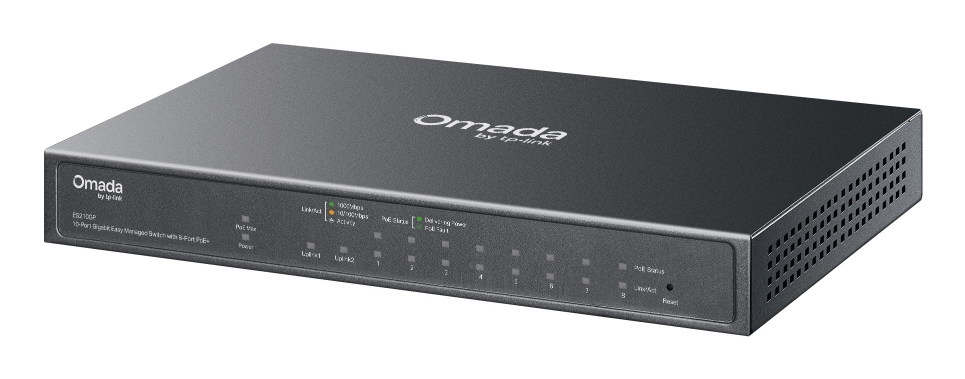

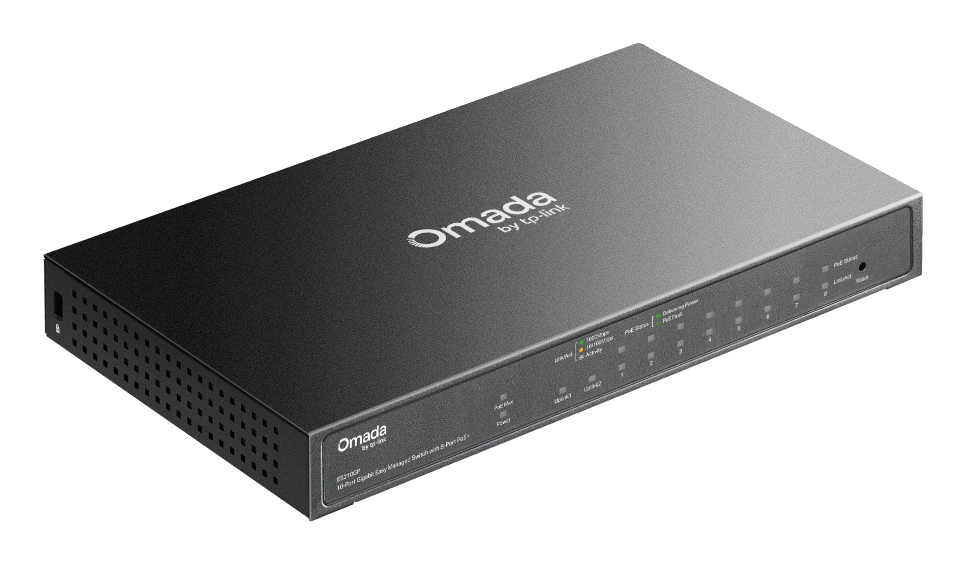

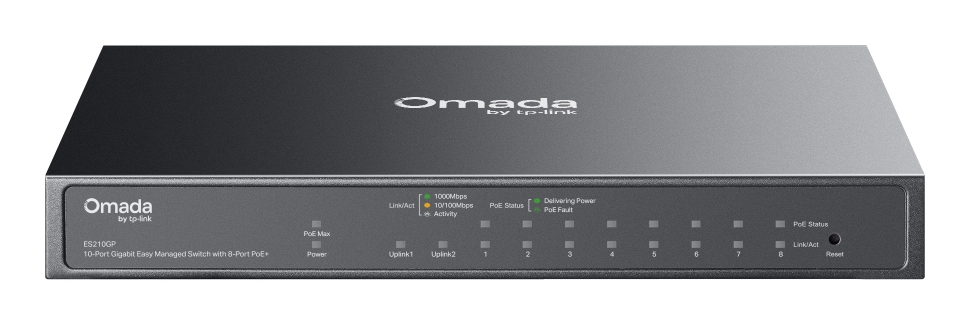

TP-Link Omada ES210GP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 53 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail
Specificaties
| Design | |
|---|---|
| Vormfactor | DIN rail |
| Kleur van het product | Black |
| LED-indicatoren | Ja |
| Rack mounting | Ja |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| Link aggregation | Ja |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| 10G support | Geen |
| Flow control support | Ja |
| Auto-negotiation | Ja |
| VLAN support | Ja |
| Virtual LAN features | MTU VLAN,Port-based VLAN,Tagged VLAN |
| Port mirroring | Ja |
| Broadcast storm control | Ja |
| Number of VLANs | 4000 |
| Auto MDI/MDI-X | Ja |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Energie | |
|---|---|
| Power source | DC |
| DC input voltage | 53 |
| Type Power over Ethernet (PoE) ondersteunt | PoE+ |
| Input current | 1.31 |
| Beveiliging | |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Ja |
| Loop protection | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 209 |
| Diepte | 126 |
| Hoogte | 26 |
| Inhoud van de verpakking | |
|---|---|
| Meegeleverde kabels | Power |
| Quick start guide | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Cloud-managed | Ja |
| Optische vezel | |
|---|---|
| Transmissie afstand (max) | 0.25 |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 20 |
| MAC address table | 8000 |
| Jumbo frames support | Ja |
| Jumbo frames | 15000 |
| Forwarding rate | 14.88 |
| Packet buffer memory | 0.5 |
| Store-and-forward | Ja |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 63 |
| Multicast-functies | |
|---|---|
| Multicast support | Ja |
