Convenient Gigabit Switch
for a Complete Omada Network

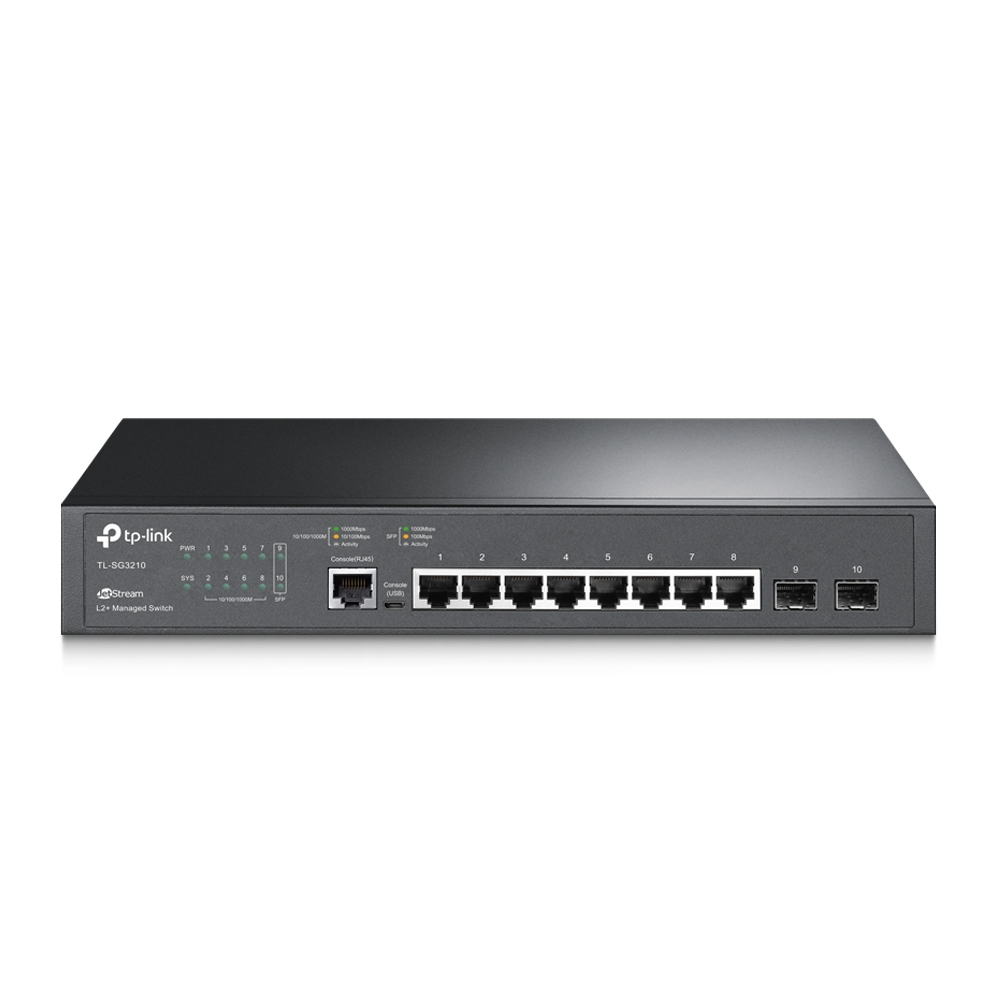

JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
for a Complete Omada Network
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Specificaties
| Design | |
|---|---|
| Vormfactor | 1U |
| Kleur van het product | Black |
| LED-indicatoren | Ja |
| Rack mounting | Ja |
| Netwerk | |
|---|---|
| Link aggregation | Ja |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | Geen |
| Flow control support | Ja |
| Spanning tree protocol | Ja |
| VLAN support | Ja |
| Virtual LAN features | Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Port mirroring | Ja |
| IP routing | Ja |
| Broadcast storm control | Ja |
| Rate limiting | Ja |
| Head-of-line (HOL) blocking | Ja |
| Number of VLANs | 4000 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/micro-USB |
| SFP module slots quantity | 2 |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power source | AC |
| Power supply included | Ja |
| Power consumption (max) | 6.84 |
| Beveiliging | |
|---|---|
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Loop protection | Ja |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | RADIUS |
| MAC address filtering | Ja |
| Static port security | Ja |
| BPDU filtering/protection | Ja |
| IP-MAC-Port binding | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 294 |
| Diepte | 180 |
| Hoogte | 44 |
| Inhoud van de verpakking | |
|---|---|
| Rack mount kit | Ja |
| Manual | Ja |
| Quick start guide | Ja |
| User guide | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Verpakking | |
|---|---|
| Breedte verpakking | 400 |
| Diepte verpakking | 250 |
| Hoogte verpakking | 80 |
| Gewicht verpakking | 1900 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| Fanless | Ja |
| Minimum system requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Cloud-managed | Ja |
| ARP inspection | Ja |
| Configuring Location Settings (CLI) | Ja |
| System event log | Ja |
| Firmware upgradeable | Ja |
| MIB support | Ja |
| Protocollen | |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 20 |
| MAC address table | 8000 |
| Jumbo frames support | Ja |
| Jumbo frames | 9000 |
| Forwarding rate | 14.9 |
| Static route | Ja |
| Packet buffer memory | 4.1 |
| Store-and-forward | Ja |
| Number of IP interfaces | 16 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Geen |
| Multicast-functies | |
|---|---|
| Multicast support | Ja |
| Multicast Listener Discovery (MLD) snooping | Ja |
