An Affordable, Scalable Business Wi-Fi Solution

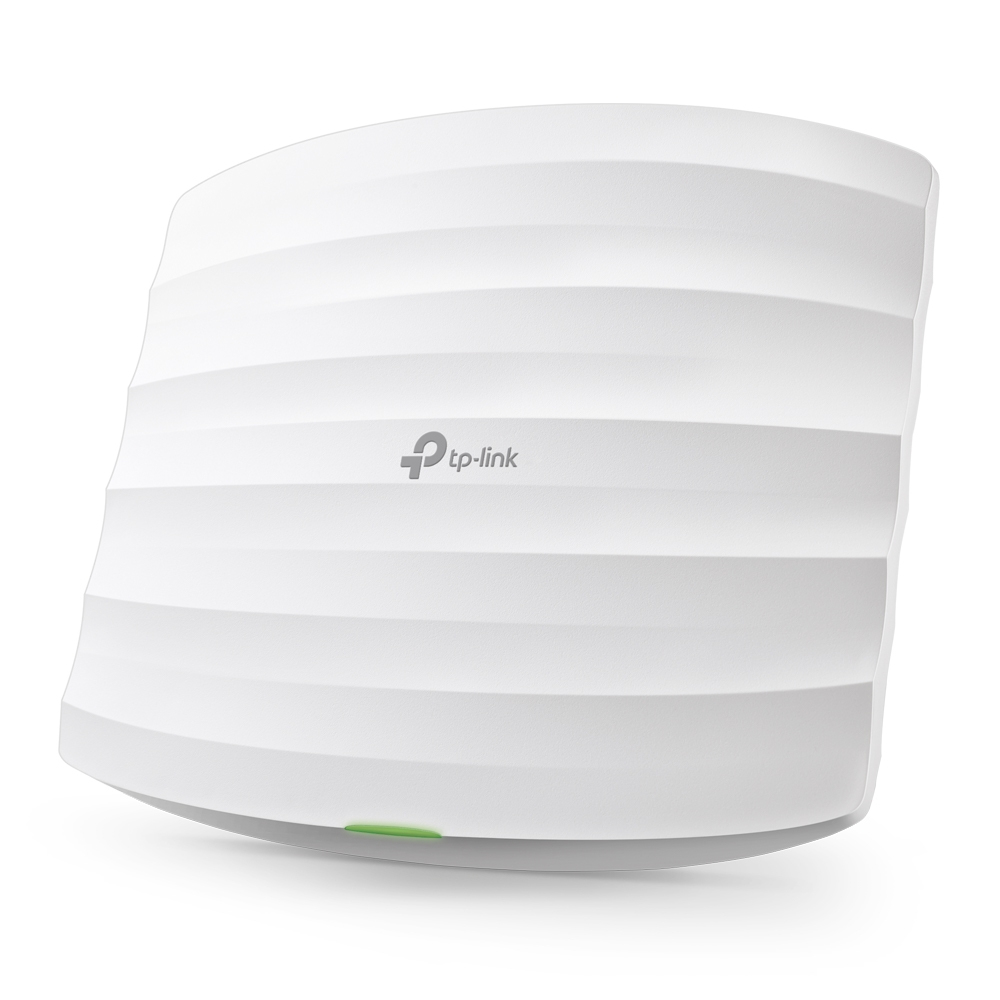

300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specificaties
| Design | |
|---|---|
| Kleur van het product | White |
| LED-indicatoren | Ja |
| Cable lock slot | Ja |
| Cable lock slot type | Kensington |
| Reset button | Ja |
| Plaatsing | Ceiling,Wall |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| VLAN support | Ja |
| Rate limiting | Ja |
| Cabling technology | 10/100Base-T(X) |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN-poort | Ethernet (RJ-45),Wi-Fi |
| Energie | |
|---|---|
| Power consumption (typical) | 5 |
| Voltage | 12 |
| Output current | 1 |
| Type Power over Ethernet (PoE) ondersteunt | Passive PoE |
| Beveiliging | |
|---|---|
| Access Control List (ACL) | Ja |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering | Ja |
| Service Set Identifier (SSID) functies | Multiple SSIDs |
| Aantal SSID-ondersteuningen | 8 |
| Systeemstatusalarm | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 180 |
| Diepte | 180 |
| Hoogte | 47.5 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Ja |
| Mounting kit | Ja |
| Inclusief PoE-adapter | Ja |
| Kenmerken | |
|---|---|
| Quantity per pack | 1 |
| Maximum data transfer rate | 300 |
| 2,4 GHz | Ja |
| 5 GHz | Geen |
| 6 GHz | Geen |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 300 |
| Frequency band | 2.4 - 2.4835 |
| Automatische kanaalselectie | Ja |
| Transmitting power (CE) | 19 |
| Zendvermogen (FCC) | 21 |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Draadloze isolatie | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | Federal Communications Commission (FCC),CE,RoHS |
| Certificering | CE, FCC, RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 246 |
| Diepte verpakking | 268 |
| Hoogte verpakking | 69 |
| Gewicht verpakking | 600 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| On/off switch | Ja |
| Minimum system requirements | Microsoft Windows 10/8/7/Vista/XP |
| Beheerfuncties | |
|---|---|
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Syslog | Ja |
| Antenne | |
|---|---|
| Antenna type | Internal |
| Antenne versterkingsniveau (max) | 3 |
| Antennas quantity | 2 |
| Type antennerichting | Omni-directional |
| Antennefuncties | Integrated antenna |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
