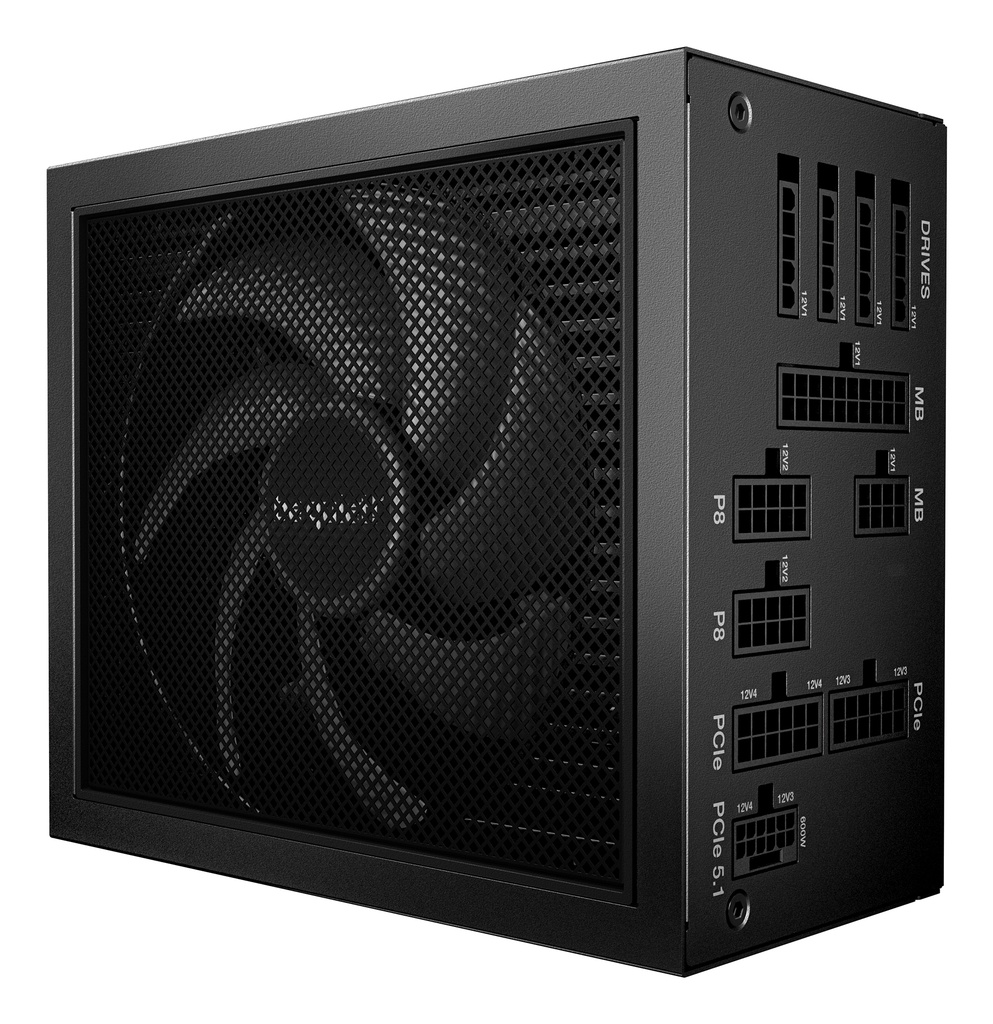

No compromise silence and performance
Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 |
| Cooling type | Active |
| Fan diameter | 135 |
| Aan/uit-schakelaar voor ventilator | Yes |
| Poorten & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Lengte stroomkabel moederbord | 600 |
| Aantal SATA power connectors | 13 |
| Lengte SATA-stroomkabel | 600,750,900,1050 |
| Lengte stroomkabel randapparaat (Molex) | 900,1050 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express voedingsconnectoren (12-pin) | 1 |
| Lengte PCI Express-stroomkabel | 600 |
| CPU power connector (4+4 pin) | Yes |
| Lengte CPU-stroomkabel | 700 |
| Cabling type | Fully-Modular |
| Aantal SATA stroomkabels | 4 |
| EPS-voedingsconnector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Energie | |
|---|---|
| Total power | 1000 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| 80 PLUS certificatie | 80 PLUS Titanium |
| Piekvermogen | 1100 |
| Maximale ingangsstroom (@110V) | 10 |
| Maximale ingangsstroom (@220V) | 5 |
| Power factor | 0.98 |
| Aantal +12V rail(s) | 4 |
| Gecombineerd vermogen (+3.3V) | 120 |
| Gecombineerd vermogen (+12V) | 996 |
| Gecombineerd vermogen (+5V) | 120 |
| Max huidige output (+3.3V) | 25 |
| Max output current (+12V1) | 33 |
| Max huidige output (+5V) | 24 |
| Max huidige output (-12V) | 0.5 |
| Max huidige output (+5Vsb) | 3 |
| Houd-tijd | 20.1 |
| Max output current (+12V2) | 33 |
| Max output current (+12V3) | 40 |
| Max output current (+12V4) | 40 |
| Gewicht en omvang | |
|---|---|
| Width | 150 |
| Depth | 175 |
| Height | 86 |
| Weight | 2200 |
| Inhoud van de verpakking | |
|---|---|
| Manual | Y |
| Screws included | Yes |
| Kenmerken | |
|---|---|
| Efficiency | 93.8 |
| Noise level | 18.2 |
| Power protection features | Over current,Over voltage,Overheating,Overload,Short circuit,Surge & inrush protection (SIP),Under voltage |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Certificaten | |
|---|---|
| Compliance certificates | CB,Federal Communications Commission (FCC),RoHS,TÜV mark,UKCA,WEEE,cTUVus |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP,Triman |
| Verpakking | |
|---|---|
| Package width | 230 |
| Package depth | 126 |
| Package height | 355 |
| Package weight | 3500 |
| Handleidingtalen | CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,POL,RUS,THA,UKR |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 4 |
| Shipping (inner) case width | 368 |
| Shipping (inner) case length | 528 |
| Shipping (inner) case height | 260 |
| Shipping (inner) case net weight | 19340 |
| Overige specificaties | |
|---|---|
| Kabelbinders inbegrepen | Yes |
| Prestatie | |
|---|---|
| On/off switch | Y |
| Mean time between failures (MTBF) | 100000 |
| Vormfactor van de voeding (PSU) | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technologie | FDB |
| Interne aansluitingen | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| Koeling | |
|---|---|
| Ventilator snelheid | 0 - 2100 |
| Muis | |
|---|---|
| Purpose | PC |
