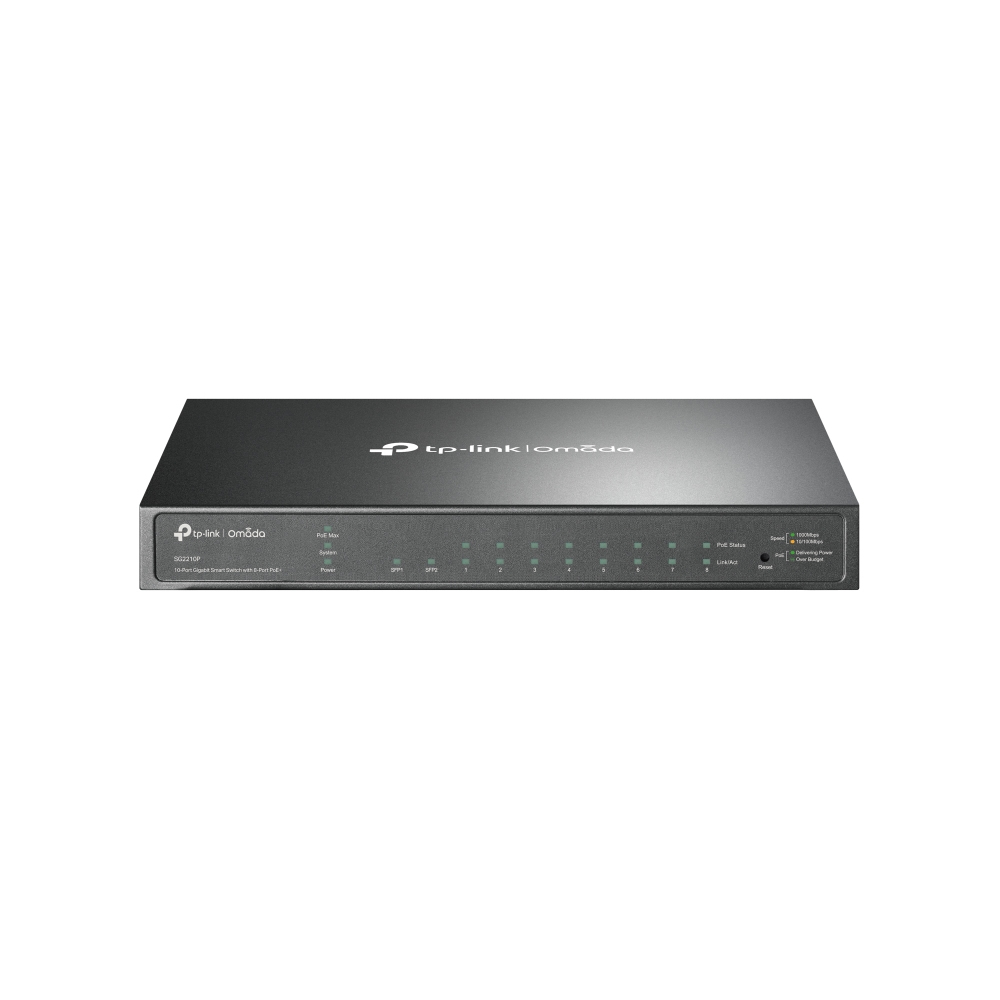

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Netwerk | |
|---|---|
| Link aggregation | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Flow control support | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Port mirroring | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power consumption (max) | 77.8 |
| Beveiliging | |
|---|---|
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Static port security | Y |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Gewicht en omvang | |
|---|---|
| Width | 209 |
| Depth | 126 |
| Height | 26 |
| Inhoud van de verpakking | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Certificaten | |
|---|---|
| Certification | CE, FCC, RoHS |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| Firmware upgradeable | Y |
| Protocollen | |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 20 |
| MAC address table | 8000 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Forwarding rate | 14.88 |
| Packet buffer memory | 4.1 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Multicast-functies | |
|---|---|
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | Yes |
