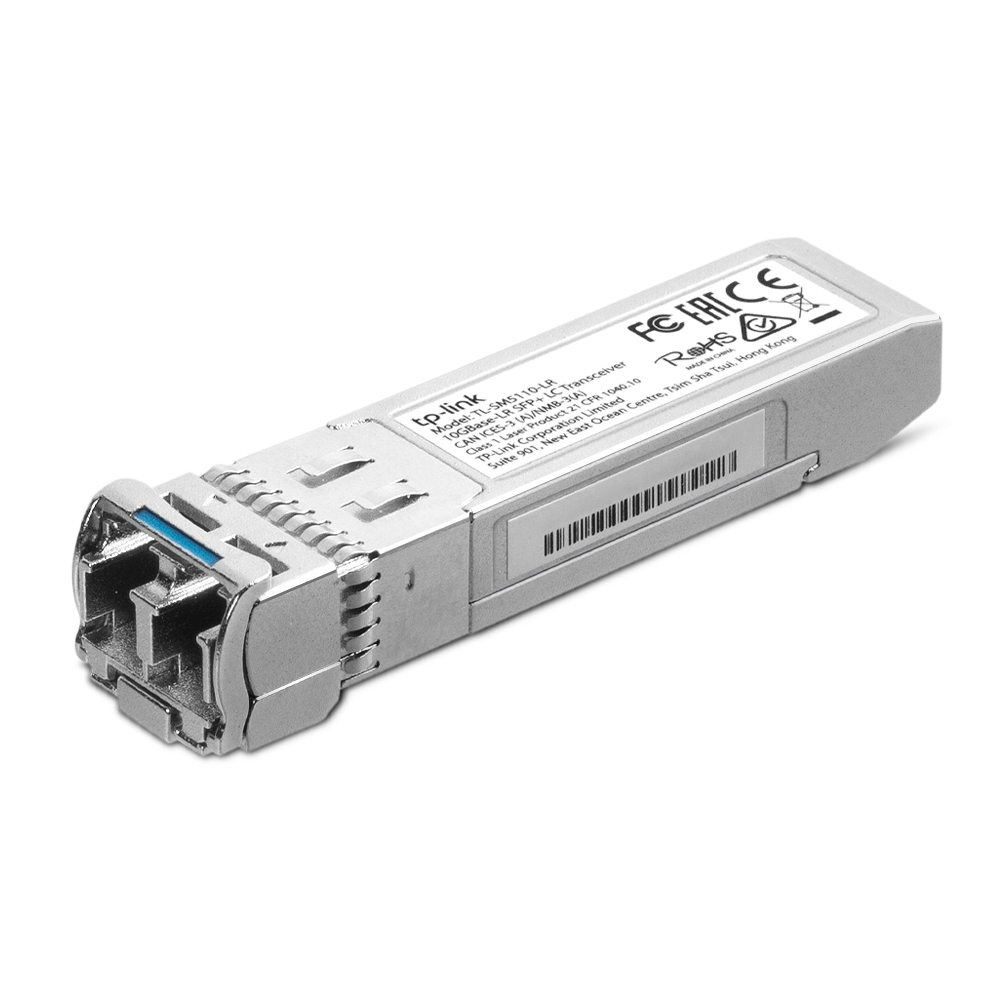

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
| Energie | |
|---|---|
| Input voltage | 3.3 |
| Gewicht en omvang | |
|---|---|
| Width | 56.7 |
| Depth | 13.9 |
| Height | 10.35 |
| Kenmerken | |
|---|---|
| Quantity per pack | 1 |
| Brand compatibility | TP-Link |
| Hot-swap | Y |
| Hot-plug ondersteuning | Yes |
| Compatible products | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Certificaten | |
|---|---|
| Certification | FCC, CE |
| Verpakking | |
|---|---|
| Package width | 81.5 |
| Package depth | 122.5 |
| Package height | 38.5 |
| Package weight | 60 |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Prestatie | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 10000 |
| Single-mode glasvezelkabel (SMF) ondersteund | Yes |
| Multi-mode glasvezelkabel (MMF) ondersteund | No |
| SFP-zendernorm | LR |
| Wavelength | 1310 |
| Duplex system | Full |
| Vezelkabel diameters ondersteund | 9/125 |
| Digital Diagnostics Monitoring (DDM) | Yes |
