Level Up Your PC with WiFi 6

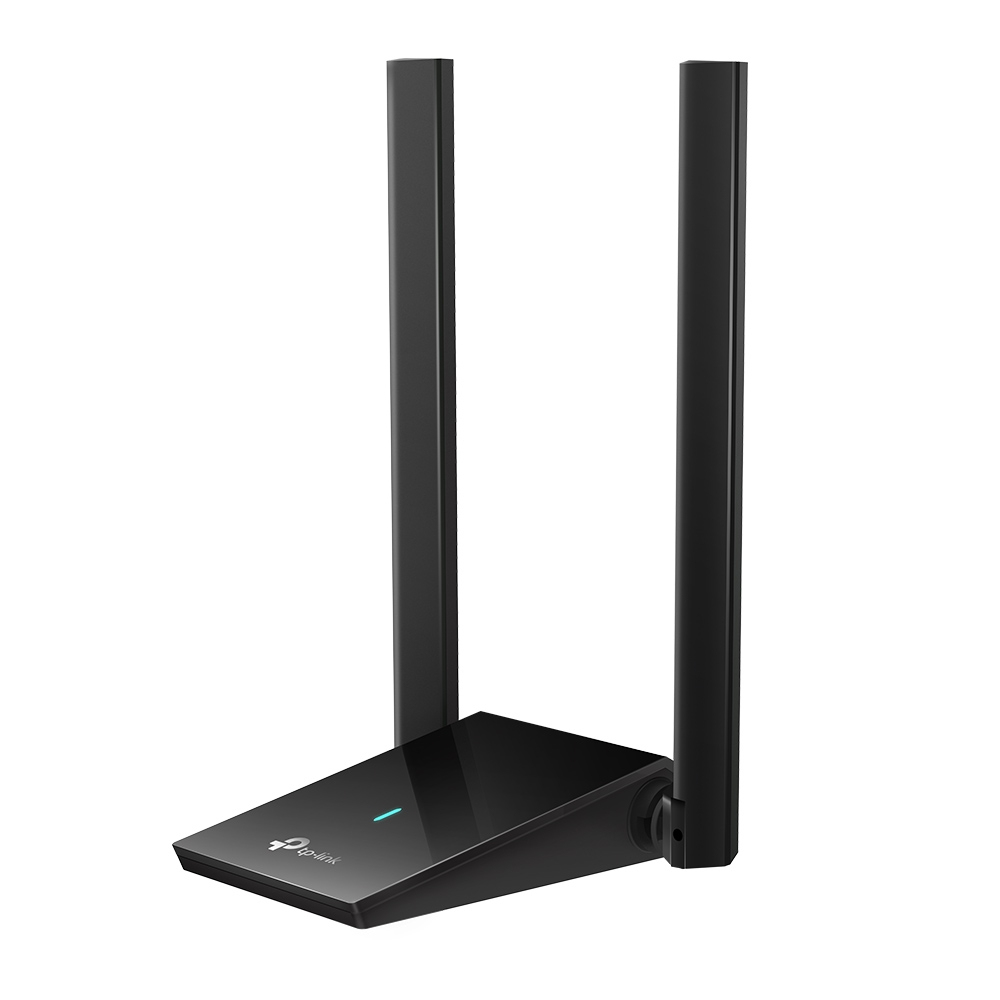

High-Gain Wireless USB Adapter
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement
Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
High-Gain Wireless USB Adapter
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement
Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Status |
| Internal | No |
| Bedrijfsmodi | Infrastructure mode |
| Netwerk | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rates supported | 11,54,300,400,574,867,1200 |
| MU-MIMO | Yes |
| Poorten & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Interface | WLAN |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Host interface | USB |
| Gewicht en omvang | |
|---|---|
| Width | 84 |
| Depth | 156.3 |
| Height | 19.2 |
| Inhoud van de verpakking | |
|---|---|
| Cables included | USB |
| Quick installation guide | Y |
| Kenmerken | |
|---|---|
| Component for | PC |
| Maximum data transfer rate | 1800 |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Certificaten | |
|---|---|
| Compliance certificates | RoHS,Federal Communications Commission (FCC),CE |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Y |
| Verpakking | |
|---|---|
| Package width | 201.5 |
| Package depth | 153 |
| Package height | 46.5 |
| Package weight | 230 |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64 |
| Antenne | |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
