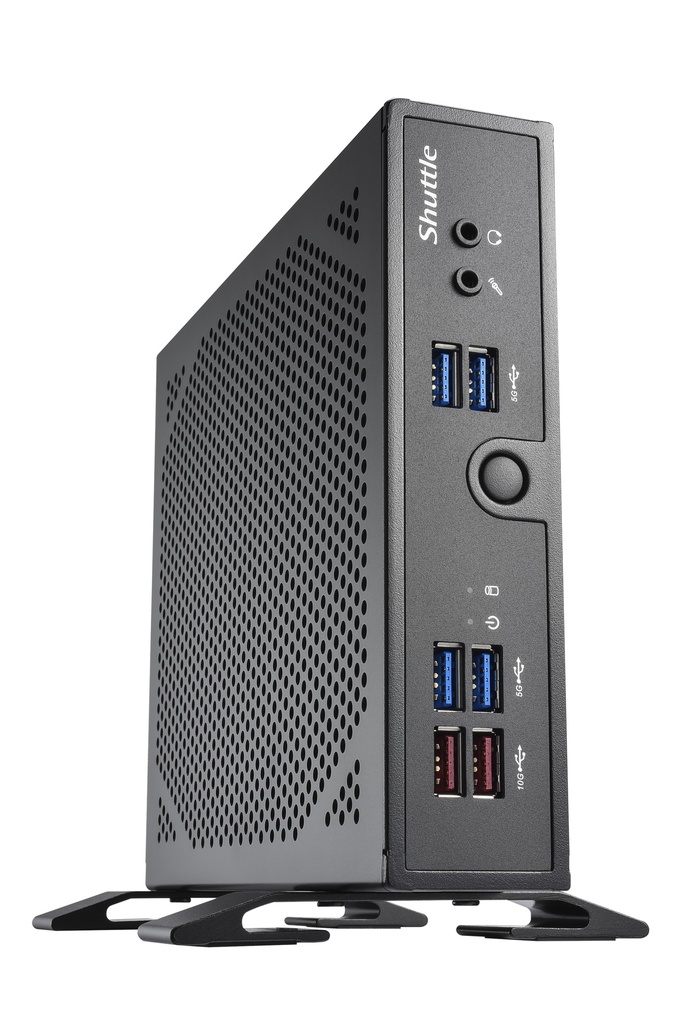

Fanless Slim PC with integrated ULV processor in industrial design
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | HDD,Power |
| Chassis type | 1.3L sized PC |
| Cooling type | Passive |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product type | Mini PC (<= 3L) barebone |
| Housing material | Steel |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor model | i5-1335U |
| Processor boost frequency | 4.6 |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor cache | 12 |
| Processor generation | Intel Core i5-13xxx |
| Performance cores | 2 |
| Efficient cores | 8 |
| ECC supported by processor | N |
| Prestatie-kernboostfrequentie | 4.6 |
| Efficiënte kernboostfrequentie | 3.4 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 64 |
| Internal memory installed | N |
| Memory voltage | 1.1 |
| Opslagmedia | |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Storage drives installed | N |
| Storage drive interface | PCI Express,Serial ATA III |
| NVMe | Y |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| On-board graphics card model | Intel UHD Graphics |
| Graphics card family | Intel |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel I219,Intel I226-LM |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| DC-in jack | Y |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Software | |
|---|---|
| Operating system installed | No |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| Number of power supply units | 1 |
| AC input frequency | 50/60 |
| Thermal Design Power (TDP) | 15 |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 |
| Power supply | 90 |
| AC adapter output current | 1.6 |
| Gewicht en omvang | |
|---|---|
| Width | 200 |
| Depth | 165 |
| Height | 39.5 |
| Weight | 1600 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Power cord included | Y |
| Kenmerken | |
|---|---|
| Audio chip | RealTek ALC888S |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Certificaten | |
|---|---|
| Compliance certificates | BSMI,CB,CE,Federal Communications Commission (FCC),RCM,RoHS,VCCI,cTUVus |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP |
| Sustainability compliance | Y |
| Verpakking | |
|---|---|
| Package weight | 2300 |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Prestatie | |
|---|---|
| On/off switch | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in processor | Y |
| Number of processors supported | 1 |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 11 |
| Linux operating systems supported | Y |
| Multimedia | |
|---|---|
| Built-in speaker(s) | N |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 3 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Y |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
