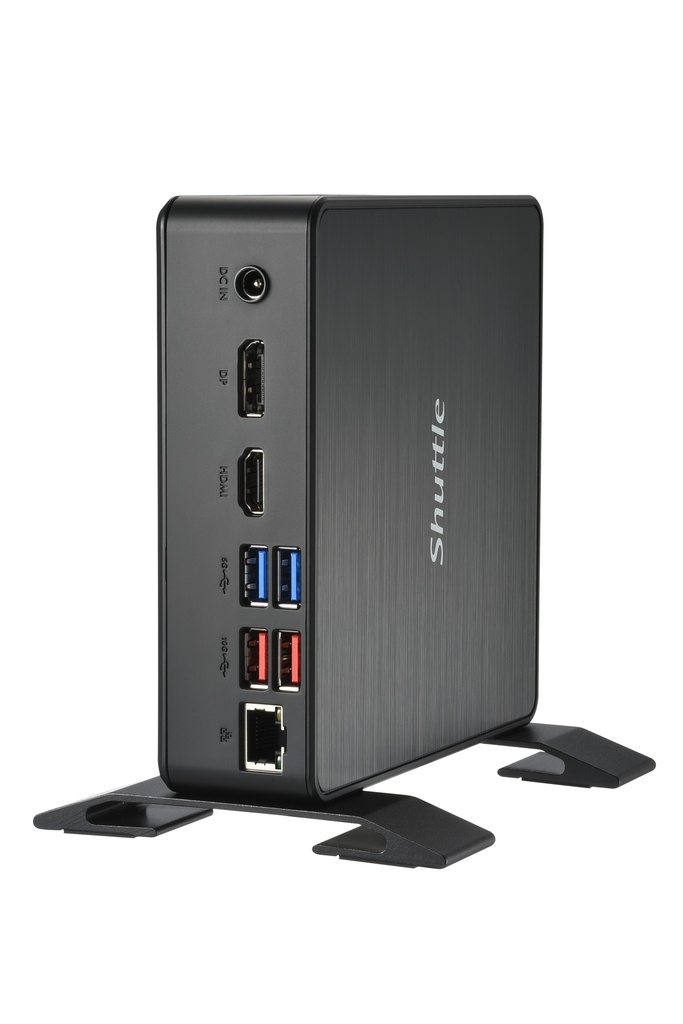

The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | HDD,Power |
| Chassis type | 0.84L sized PC |
| Cooling type | Active |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product type | Mini PC (<= 3L) barebone |
| Housing material | Plastic |
| Safety | CB IEC60950/62368, cTUVus (UL 62368) |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor cache | 12 |
| CPU configuration (max) | 1 |
| Processor generation | Intel Core i5-12xxx |
| Maximum resolution | 7680 x 4320 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Geheugen | |
|---|---|
| ECC | N |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3200 |
| Maximum internal memory | 64 |
| Memory voltage | 1.2 |
| Non-ECC | Y |
| Opslagmedia | |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express,Serial ATA III |
| Card reader integrated | N |
| NVMe | Y |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| On-board graphics card model | Intel UHD Graphics |
| Graphics card family | Intel |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel I219 |
| Poorten & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| DC-in jack | Y |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Software | |
|---|---|
| Operating system installed | No |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| Number of power supply units | 1 |
| AC input frequency | 50/60 |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 |
| Power supply | 65 |
| AC adapter output current | 3.42 |
| Gewicht en omvang | |
|---|---|
| Width | 142 |
| Depth | 142 |
| Height | 42 |
| Weight | 400 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Power cord included | Y |
| Drivers included | Y |
| Kenmerken | |
|---|---|
| Motherboard chipset | Intel SoC |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Certificaten | |
|---|---|
| Compliance certificates | BSMI,CE,Federal Communications Commission (FCC),RoHS,UKCA |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP |
| Sustainability compliance | Y |
| Verpakking | |
|---|---|
| Package weight | 1200 |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Prestatie | |
|---|---|
| On/off switch | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in processor | Y |
| Number of processors supported | 1 |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 11 |
| Linux operating systems supported | Y |
| Multimedia | |
|---|---|
| Built-in speaker(s) | N |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 3 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Y |
| BIOS | |
|---|---|
| BIOS type | AMI |
| Uitbreidingsmodules | |
|---|---|
| Aantal M.2 (M) slots | 2 |
| PCI Express slots versie | 3.0,4.0 |
