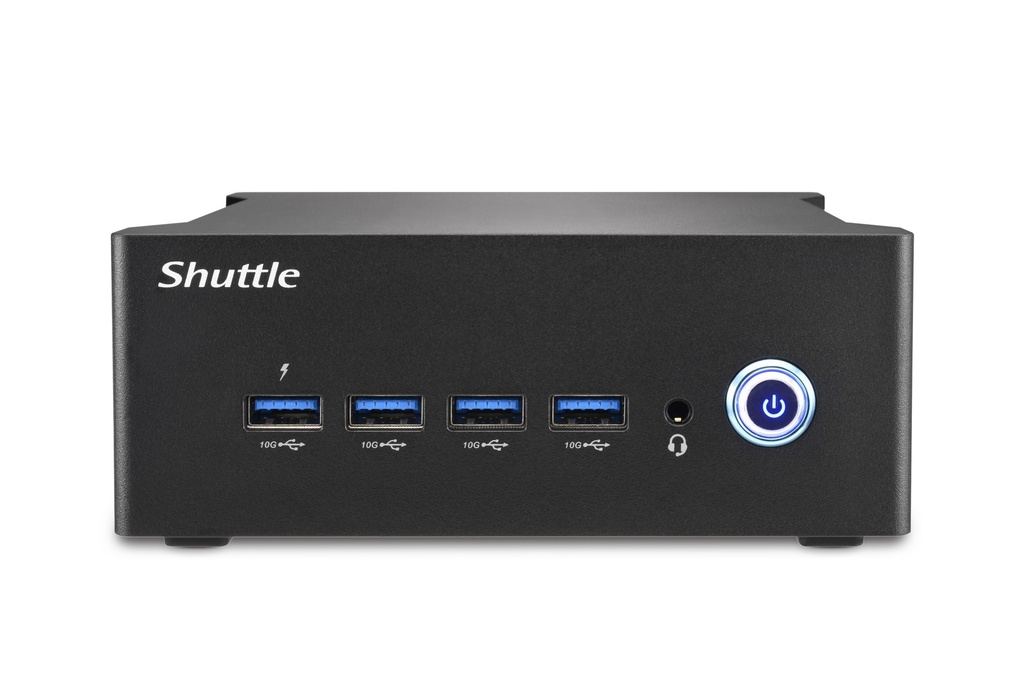

The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and offering comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | 1L sized PC |
| Cooling type | Active |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product type | Mini PC (<= 3L) barebone |
| Housing material | Plastic |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor model | 125H |
| Processor boost frequency | 4.5 |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor cache | 18 |
| Processor generation | Intel Core Ultra (Series 1) |
| Maximum resolution | 3840 x 2160 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.5 |
| Efficient-core Max Turbo Frequency | 3.6 |
| Maximale turbosnelheid van cores met laag energieverbruik | 2.5 |
| Prestatie-kernbasisfrequentie | 1.2 |
| Efficiënte kernbasisfrequentie | 0.7 |
| Basissnelheid van cores met laag energieverbruik | 700 |
| Geheugen | |
|---|---|
| ECC | N |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600 |
| Maximum internal memory | 64 |
| Internal memory installed | N |
| Memory voltage | 1.1 |
| Non-ECC | Y |
| Opslagmedia | |
|---|---|
| Storage drive sizes supported | M.2 |
| Storage drives installed | N |
| Compatible memory cards | SD |
| Storage drive interface | PCI Express |
| Card reader integrated | Yes |
| NVMe | Y |
| SSD form factor | M.2 |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| On-board graphics card model | Intel Arc Graphics |
| Graphics card family | Intel |
| Number of displays supported | 4 |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel I226-V |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Y |
| Combo headphone/mic port | Y |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| Number of power supply units | 1 |
| AC input frequency | 50/60 |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 |
| Power supply | 120 |
| AC adapter output current | 6.32 |
| Gewicht en omvang | |
|---|---|
| Width | 132 |
| Depth | 143 |
| Height | 55 |
| Weight | 800 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Power cord included | Y |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Prestatie | |
|---|---|
| On/off switch | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in processor | Y |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| Linux operating systems supported | Y |
| Multimedia | |
|---|---|
| Built-in speaker(s) | N |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | SSD |
| Aansluitingen achterzijde | |
|---|---|
| Aantal USB4 Gen 2x2 poorten | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
