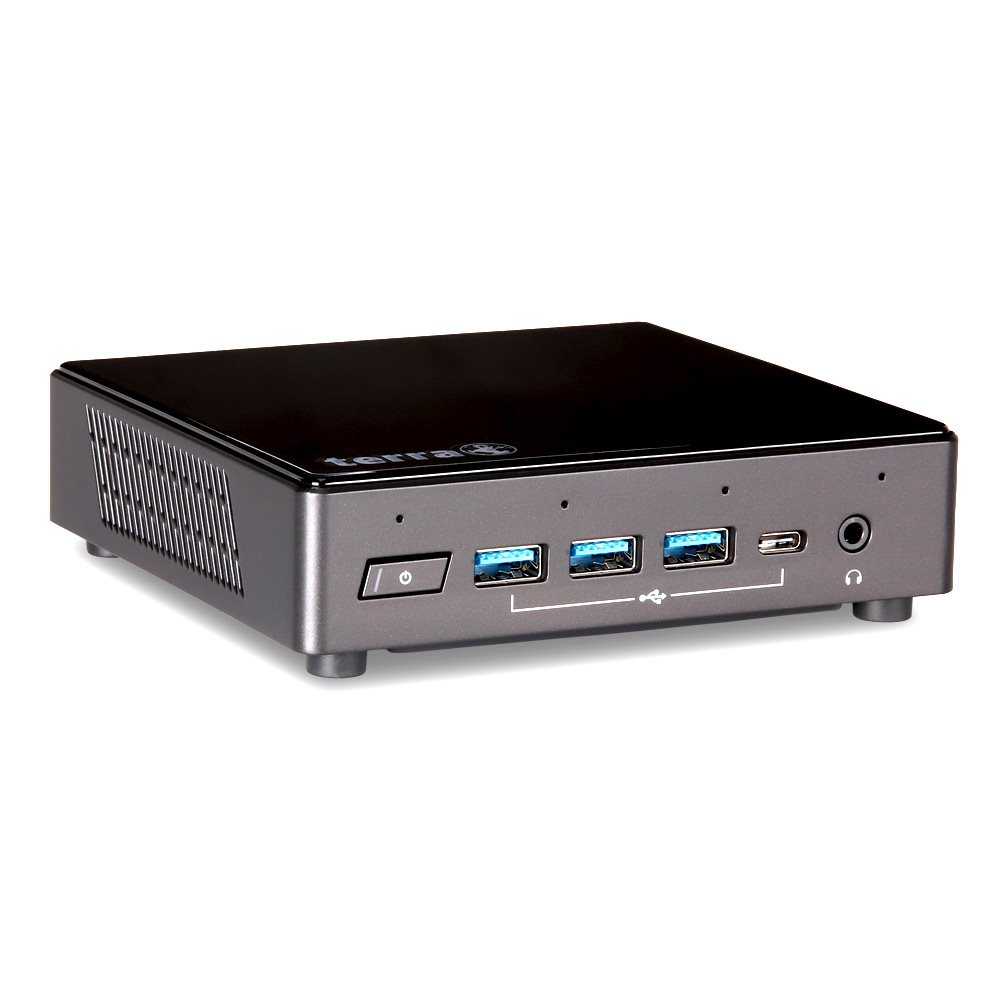

TERRA PC-Micro 3100 Silent Greenline. Processor frequency: 1.1 GHz, Processor family: Intel® Celeron®, Processor model: N5100. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 240 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Pro. Power supply: 36 W. Chassis type: Micro PC. Product type: PC. Weight: 1.3 kg. Product colour: Black
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Micro PC |
| Cooling type | Active |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Beeldscherm | |
|---|---|
| Inclusief monitor | No |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Celeron |
| Processor model | N5100 |
| Processor frequency | 1.1 |
| Processor boost frequency | 2.8 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 4 |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Geheugen | |
|---|---|
| Internal memory | 8 |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 |
| Geheugenlayout | 1 x 8 |
| Opslagmedia | |
|---|---|
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| Total storage capacity | 240 |
| Storage media | SSD |
| Optical drive type | N |
| SSD capacity | 240 |
| SSD interface | PCI Express |
| NVMe | Y |
| SSD form factor | M.2 |
| Totale capaciteit SSD's | 240 |
| Number of SSDs installed | 1 |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| Aparte grafische adapter | No |
| Discrete graphics card model | Not available |
| Interne-GPU-fabrikant | Intel |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card model | Intel UHD Graphics |
| Aantal HDMI-poorten grafische adapter | 1 |
| Aantal grafische adapter Mini DisplayPort-poorten | 1 |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Wi-Fi | Y |
| Bluetooth | Y |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| LAN controller | Realtek RTL8111H |
| WLAN-controller-model | Intel Wi-Fi 6 AX201 |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DC-in jack | Y |
| Combo headphone/mic port | Y |
| Mini DisplayPort kwantiteit | 1 |
| Aantal USB-poorten achter | 2 |
| Aantal USB-poorten voor | 4 |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Energie | |
|---|---|
| Power consumption (typical) | 4.69 |
| Power consumption (standby) | 0.67 |
| Power supply | 36 |
| Power supply input voltage | 100 - 240 |
| Power supply input frequency | 50/60 |
| Gewicht en omvang | |
|---|---|
| Width | 117 |
| Depth | 128 |
| Height | 36 |
| Weight | 1300 |
| Inhoud van de verpakking | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Overige specificaties | |
|---|---|
| Opslag opties | SATA 6Gb/s |
| Locale/landinstellingen | International repository |
| Prestatie | |
|---|---|
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Aansluitingen achterzijde | |
|---|---|
| Microphone in | Y |
