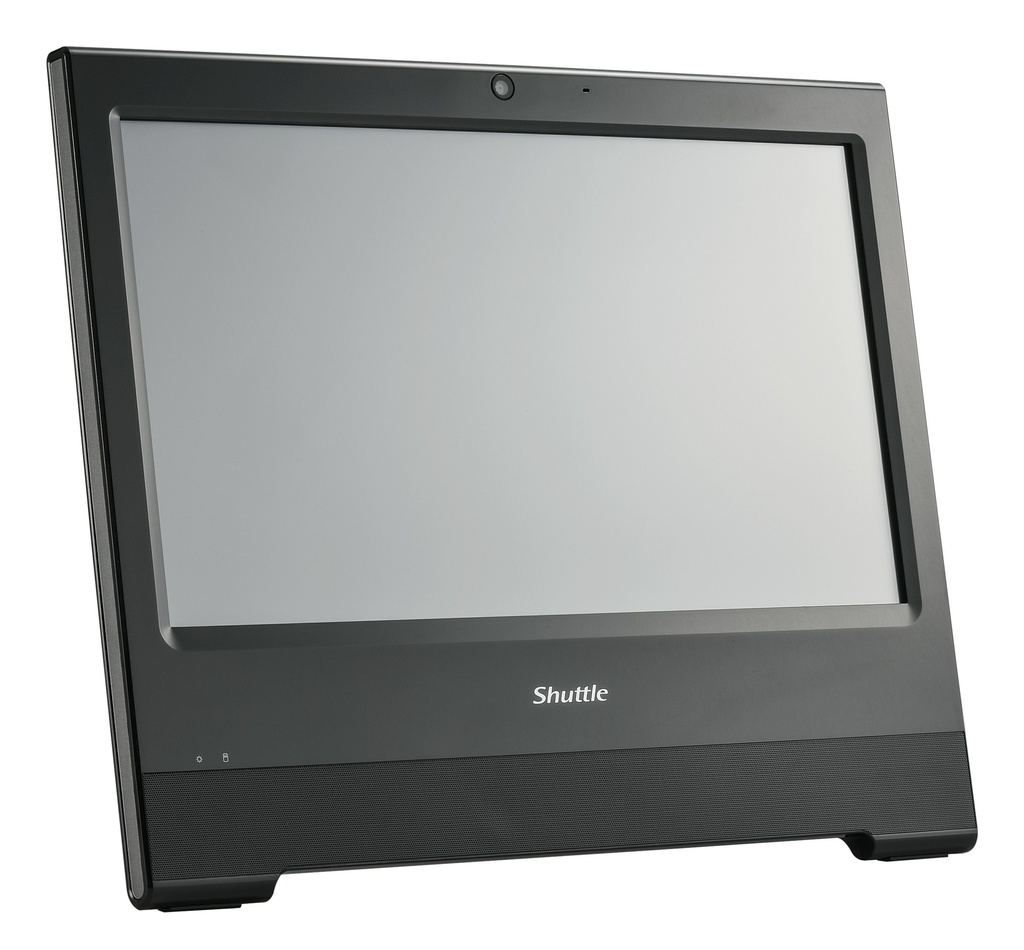

Shuttle All-in-One Barebone X50V9

15.6" All-in-One PC for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V9 is the latest addition to the X50 Series and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

  • Product colour - Black
  • LED indicators
  • Operating temperature (T-T)
  • Operating relative humidity (H-H)
  • Compliance certificates
  • Sustainability certificates
  • Width
  • Depth
  • Height
  • Weight
  • Package weight
  • Harmonized System (HS) code
  • Storage drive sizes supported
  • Processor manufacturer
  • Processor family
  • Processor model
  • Processor cache
  • Ethernet LAN
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • HDMI ports quantity
  • HDMI version
  • Ethernet LAN (RJ-45) ports
  • Chassis type
  • Cooling type
  • Cable lock slot
  • Cable lock slot type
  • On/off switch
  • AC input voltage
  • ECC
  • AC input frequency
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • Windows operating systems supported
  • Linux operating systems supported
  • Thermal Design Power (TDP)
  • Quick start guide
  • DC-in jack
  • Product type
  • AC adapter included
  • Power cord included
  • Power supply type
  • Wi-Fi
  • Bluetooth
  • Display diagonal
  • Storage drive interface
  • Display resolution
  • HD type
  • Panel type
  • Touchscreen
  • Built-in speaker(s)
  • VESA mounting
  • Panel mounting interface
  • Wi-Fi standards
  • Top Wi-Fi standard
  • Number of speakers
  • RMS rated power
  • AC adapter output voltage
  • Bluetooth version
  • VGA (D-Sub) ports quantity
  • Aspect ratio
  • Processor socket
  • Supported memory types
  • Number of memory slots
  • Memory slots type
  • Memory channels
  • Supported memory clock speeds
  • Maximum internal memory
  • Supported storage drive types
  • Audio chip
  • BIOS type
  • Drivers included
  • Number of storage drives supported
  • Microphone in
  • LAN controller
  • Power supply
  • On-board graphics card
  • WLAN-controller-model
  • Performance cores
  • Efficient cores
  • NVMe
  • On-board graphics card model
  • Combo headphone/mic port
  • Trusted Platform Module (TPM)
  • Trusted Platform Module (TPM) version
  • Efficiënte kernbasisfrequentie
  • Display brightness
  • Built-in processor
  • Graphics card family
  • AC adapter output current
  • Number of processors supported
  • Memory voltage
  • Non-ECC
Add to cart
Add to wishlist
Price
538.50 € 538.50 €

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
15.6" All-in-One PC for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V9 is the latest addition to the X50 Series and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Specifications

Design
Product colour Black
LED indicators HDD,Power
Chassis type All-in-one
Cooling type Passive
Cable lock slot Y
Cable lock slot type Kensington
Product type All-in-One PC barebone
Beeldscherm
Display diagonal 15.6
Display resolution 1366 x 768
HD type HD
Panel type LCD
Touchscreen Y
Aspect ratio 16:9
Display brightness 220
Processor
Processor manufacturer Intel
Processor family Intel Celeron
Processor model 7305
Processor cache 8
Processor socket LGA 1700
Performance cores 1
Efficient cores 4
Efficiënte kernbasisfrequentie 0.9
Geheugen
ECC N
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type SO-DIMM
Memory channels Dual-channel
Supported memory clock speeds 4800
Maximum internal memory 64
Memory voltage 1.1
Non-ECC Y
Opslagmedia
Storage drive sizes supported 2.5,M.2
Storage drive interface M.2,Serial ATA III
NVMe Y
Grafisch
On-board graphics card Y
On-board graphics card model Intel UHD Graphics
Graphics card family Intel
Netwerk
Ethernet LAN Y
Wi-Fi Y
Bluetooth Y
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Bluetooth version 4.2
LAN controller Intel I219
WLAN-controller-model Realtek RTL8821CE
Poorten & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
HDMI ports quantity 1
HDMI version 2.0b
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
DC-in jack Y
VGA (D-Sub) ports quantity 1
Combo headphone/mic port Y
Energie
AC input voltage 100 - 240
AC input frequency 50/60
Thermal Design Power (TDP) 15
Power supply type External AC adapter
AC adapter output voltage 19
Power supply 90
AC adapter output current 4.74
Gewicht en omvang
Width 391
Depth 42
Height 327
Weight 3500
Inhoud van de verpakking
Quick start guide Y
AC adapter included Y
Power cord included Y
Drivers included Y
Kenmerken
Audio chip Realtek ALC888S
Eisen aan de omgeving
Operating temperature (T-T) 0 - 40
Operating relative humidity (H-H) 10 - 90
Certificaten
Compliance certificates BSMI,CE,Federal Communications Commission (FCC),RCM,RoHS,UKCA,VCCI
Duurzaamheid
Sustainability certificates ENERGY STAR
Verpakking
Package weight 4200
Logistieke gegevens
Harmonized System (HS) code 84714100
Prestatie
On/off switch Y
Trusted Platform Module (TPM) Y
Trusted Platform Module (TPM) version 2.0
Built-in processor Y
Number of processors supported 1
Minimale systeemeisen
Windows operating systems supported Windows 10,Windows 11
Linux operating systems supported Y
Multimedia
Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 2
Ergonomie
VESA mounting Y
Panel mounting interface 100 x 100
Opslag-controllers
Supported storage drive types HDD & SSD
Number of storage drives supported 3
Aansluitingen achterzijde
Microphone in Y
BIOS
BIOS type AMI
