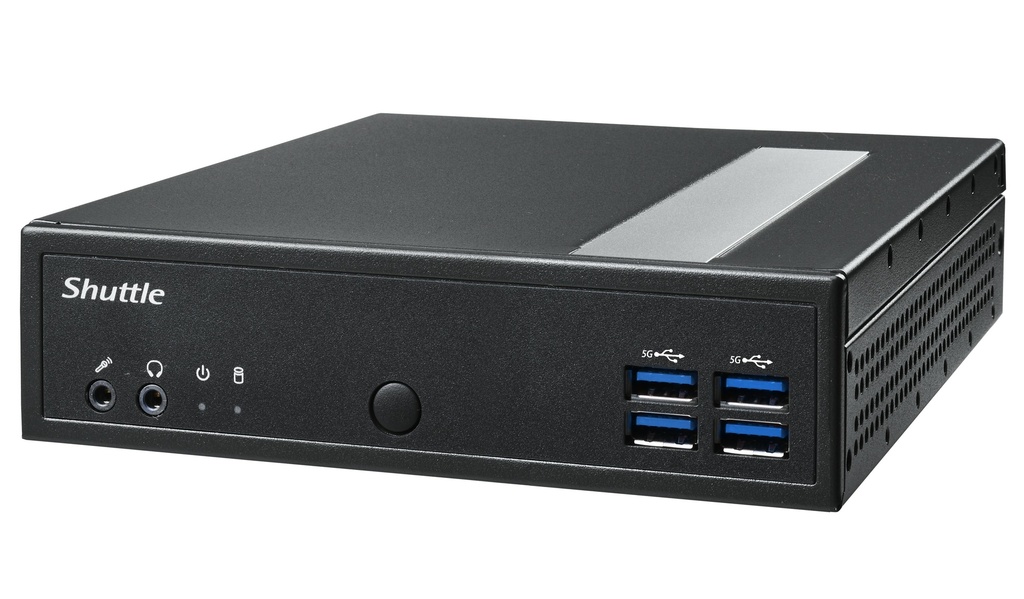

The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle's DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen "Alder Lake-N" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | HDD,Power |
| Chassis type | 1.35L sized PC |
| Cooling type | Passive |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product type | Mini PC (<= 3L) barebone |
| Housing material | Steel |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N100 |
| Processor boost frequency | 3.4 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 6 |
| Maximum resolution | 4096 x 2160 |
| ECC supported by processor | N |
| Geheugen | |
|---|---|
| ECC | N |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Memory channels | Single-channel |
| Supported memory clock speeds | 4800 |
| Maximum internal memory | 16 |
| Internal memory installed | N |
| Memory voltage | 1.1 |
| Non-ECC | Y |
| Opslagmedia | |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| Storage drives installed | N |
| Storage drive interface | PCI Express,Serial ATA III |
| Card reader integrated | N |
| NVMe | Y |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| Graphics card family | Intel |
| Number of displays supported | 3 |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel I226-LM |
| Poorten & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| DC-in jack | Y |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 2 |
| Software | |
|---|---|
| Operating system installed | No |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| Number of power supply units | 1 |
| AC input frequency | 50/60 |
| Thermal Design Power (TDP) | 6 |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 |
| Power supply | 65 |
| AC adapter output current | 3.42 |
| Gewicht en omvang | |
|---|---|
| Width | 165 |
| Depth | 190 |
| Height | 43 |
| Weight | 800 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Power cord included | Y |
| Drivers included | Y |
| Kenmerken | |
|---|---|
| Audio chip | Realtek ALC888S |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Certificaten | |
|---|---|
| Compliance certificates | BSMI,CE,Federal Communications Commission (FCC),RCM,RoHS,UKCA,VCCI |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP |
| Sustainability compliance | Y |
| Verpakking | |
|---|---|
| Package weight | 2100 |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Prestatie | |
|---|---|
| On/off switch | Y |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in processor | Y |
| Number of processors supported | 1 |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 11 x64 |
| Linux operating systems supported | Y |
| Multimedia | |
|---|---|
| Built-in speaker(s) | N |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Panel mounting interface | 100 x 75 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Y |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
