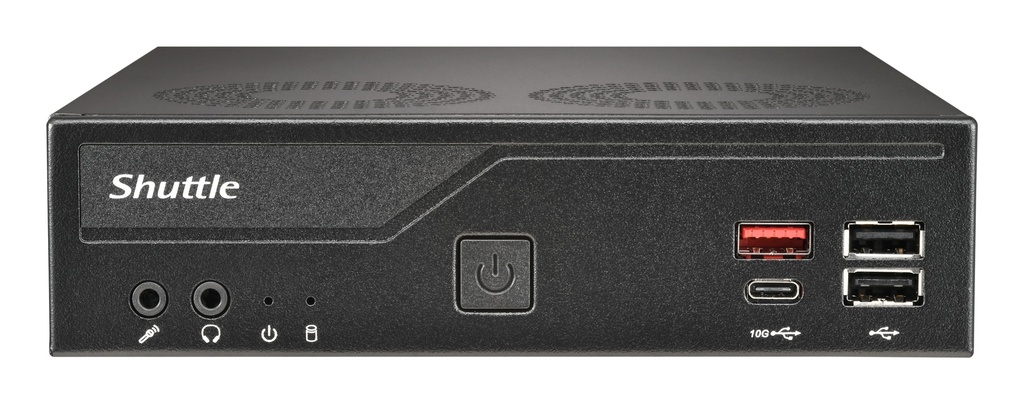

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | HDD,Power |
| Chassis type | 1.35L sized PC |
| Cooling type | Active |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product type | Mini PC (<= 3L) barebone |
| Housing material | Metal |
| Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Geheugen | |
|---|---|
| ECC | N |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600 |
| Maximum internal memory | 96 |
| Memory voltage | 1.1 |
| Non-ECC | Y |
| Opslagmedia | |
|---|---|
| Storage drive sizes supported | 2.5 |
| Storage drive interface | M.2,PCI Express,Serial ATA |
| NVMe | Y |
| SSD form factor | M.2 |
| Grafisch | |
|---|---|
| On-board graphics card | Y |
| Netwerk | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel I219,Intel I226 |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| DC-in jack | Y |
| Serial ports quantity | 2 |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| Number of power supply units | 1 |
| AC input frequency | 50/60 |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 |
| Power supply | 120 |
| AC adapter output current | 6.32 |
| Gewicht en omvang | |
|---|---|
| Width | 165 |
| Depth | 190 |
| Height | 43 |
| Weight | 1300 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Y |
| AC adapter included | Y |
| Power cord included | Y |
| Drivers included | Y |
| Eisen aan de omgeving | |
|---|---|
| Operating temperature (T-T) | 0 - 50 |
| Operating relative humidity (H-H) | 10 - 90 |
| Duurzaamheid | |
|---|---|
| Sustainability certificates | ENERGY STAR,ErP |
| Logistieke gegevens | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Prestatie | |
|---|---|
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Number of processors supported | 1 |
| Minimale systeemeisen | |
|---|---|
| Linux operating systems supported | Y |
| Multimedia | |
|---|---|
| Built-in speaker(s) | N |
| Ergonomie | |
|---|---|
| VESA mounting | Y |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Y |
| Aantal USB4 Gen 2x2 poorten | 1 |
