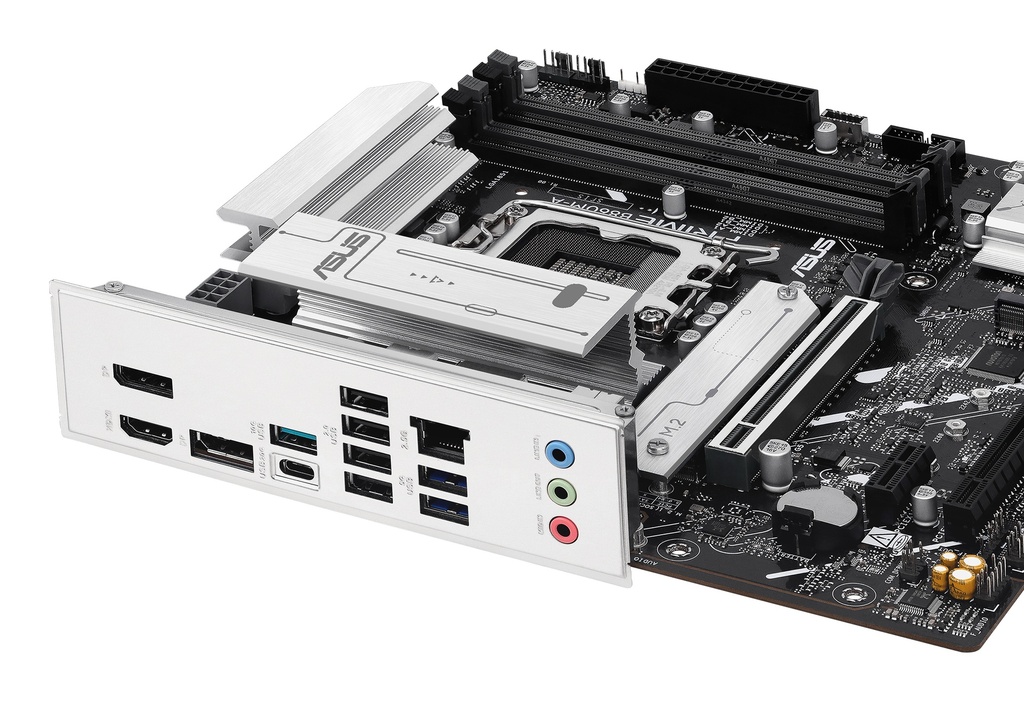

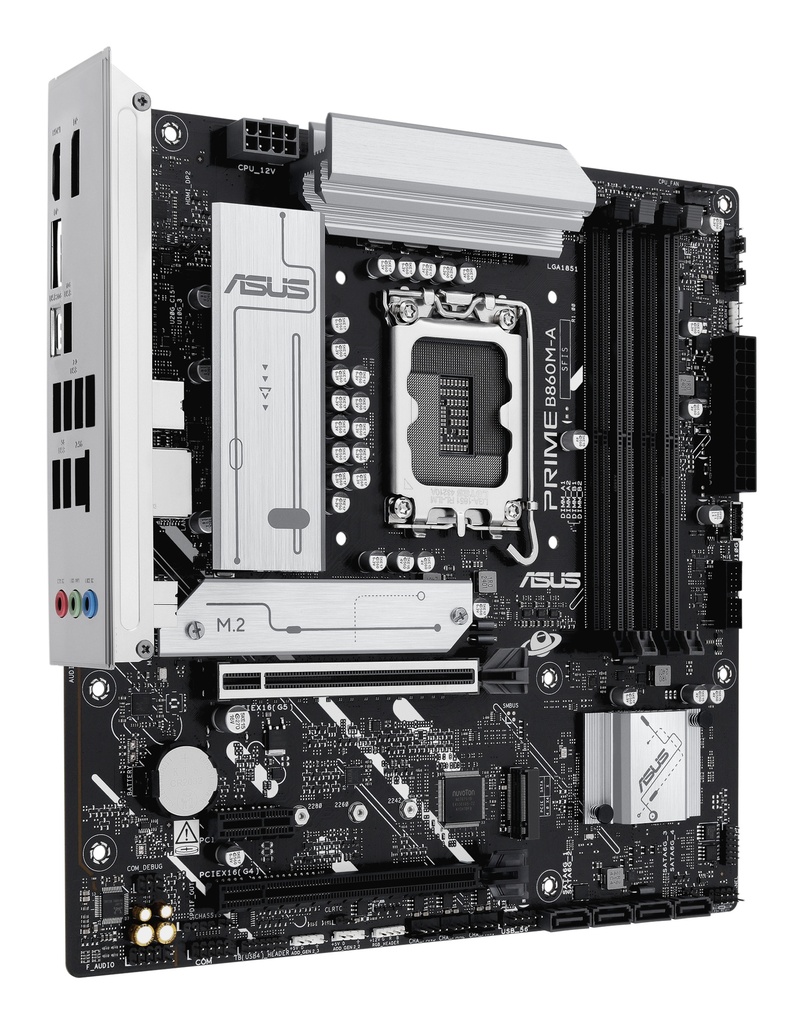

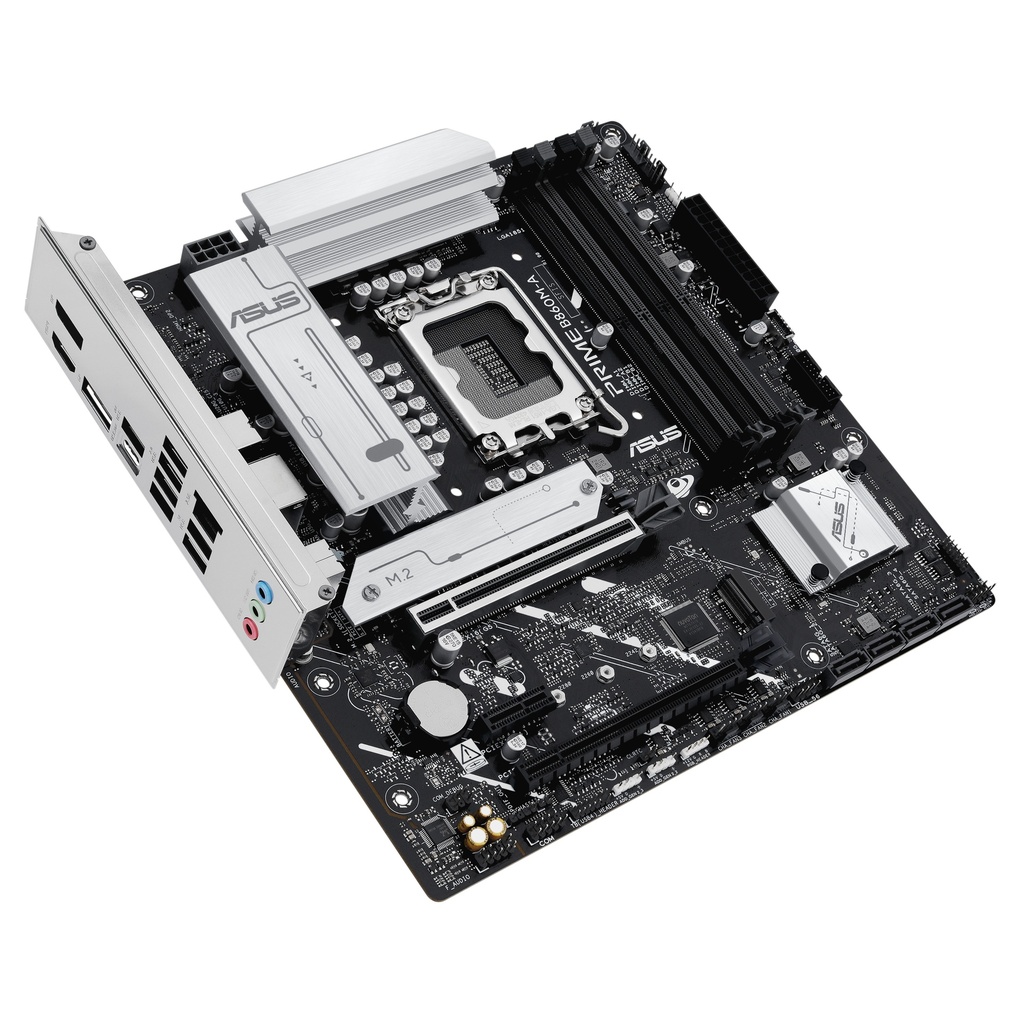

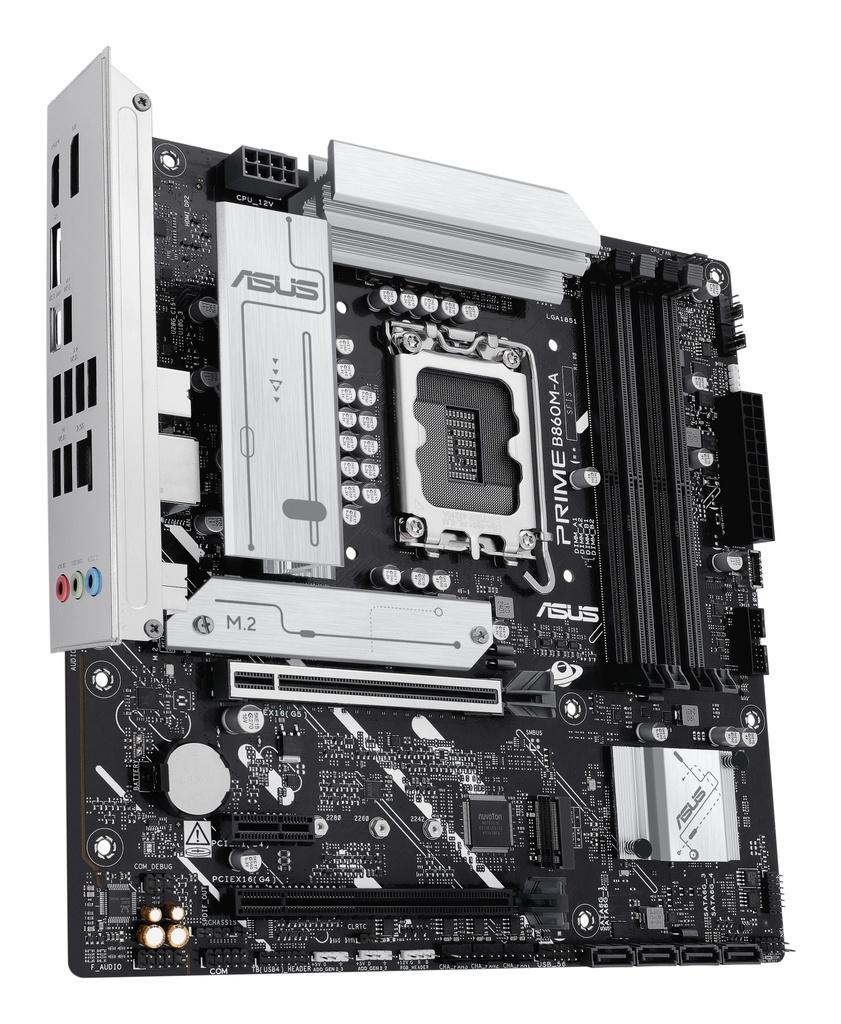

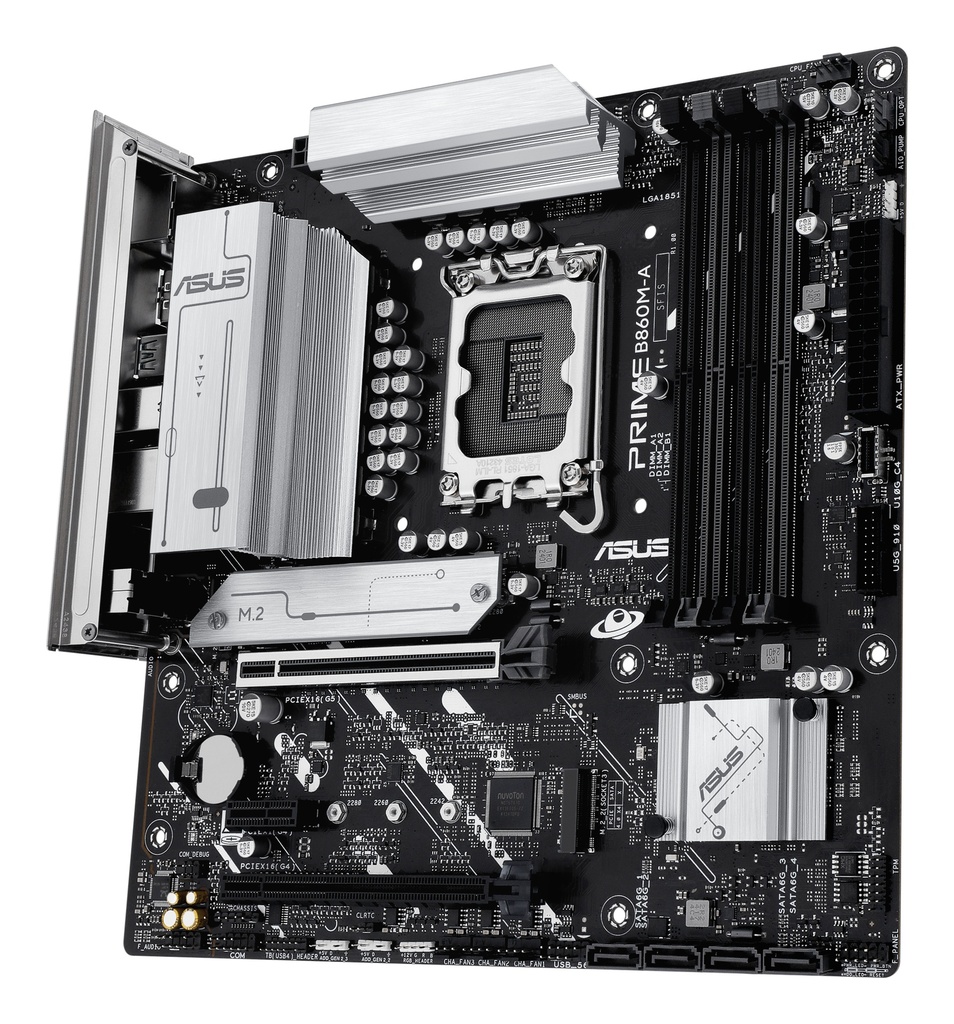

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Multicolour |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Parallel processing technology support | Not supported |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC-compatibiliteit | non-ECC |
| Maximum internal memory | 256 |
| Ondersteunde geheugenkloksnelheid (max) | 8666 |
| Niet gebufferd geheugen | Ja |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Geen |
| Poorten & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Gewicht en omvang | |
|---|---|
| Breedte | 244 |
| Diepte | 244 |
| Hoogte | 50 |
| Kenmerken | |
|---|---|
| Component for | PC |
| Motherboard chipset | Intel B860 |
| Audio-uitgangskanalen | 7.1 |
| Moederbord form factor | Micro ATX |
| Moederbord chipset familie | Intel |
| Verpakking | |
|---|---|
| Breedte verpakking | 275 |
| Diepte verpakking | 275 |
| Hoogte verpakking | 67.5 |
| Gewicht verpakking | 1360 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Maximum aantal HDD's per behuizing | 4 |
| Number of storage drives supported | 6 |
| RAID support | Ja |
| RAID levels | 0,1,5,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 aansluitingen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Number of SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| 12V vermogen-connector | Ja |
| Aantal CPU-ventilatoraansluitingen | 1 |
| Aansluitingen voor behuizingsventilatoren | 3 |
| EPS power connector (8-pin) | Ja |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Thunderbolt-headers | 1 |
| S/PDIF uitgang | Ja |
| Chassis intrusion aansluiting | Ja |
| COM aansluitingen | 1 |

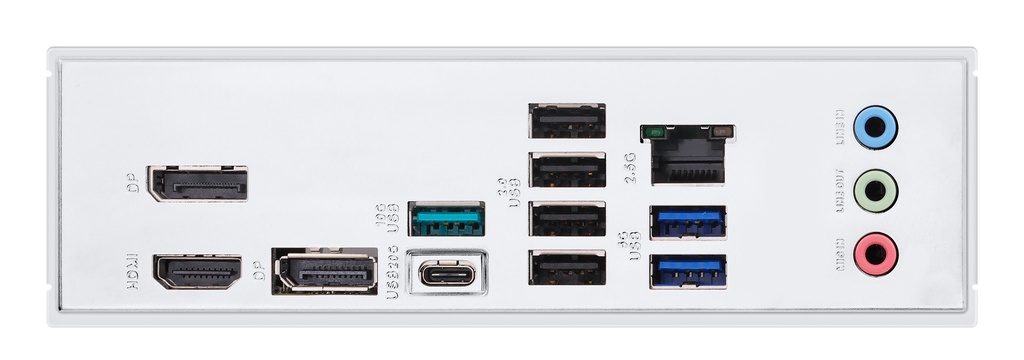

| Aansluitingen achterzijde | |
|---|---|
| Microphone in | Ja |
| Lijningang | Ja |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 |
| Uitbreidingsmodules | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) sleuven | 1 |
