PCIe 4.0 Ready

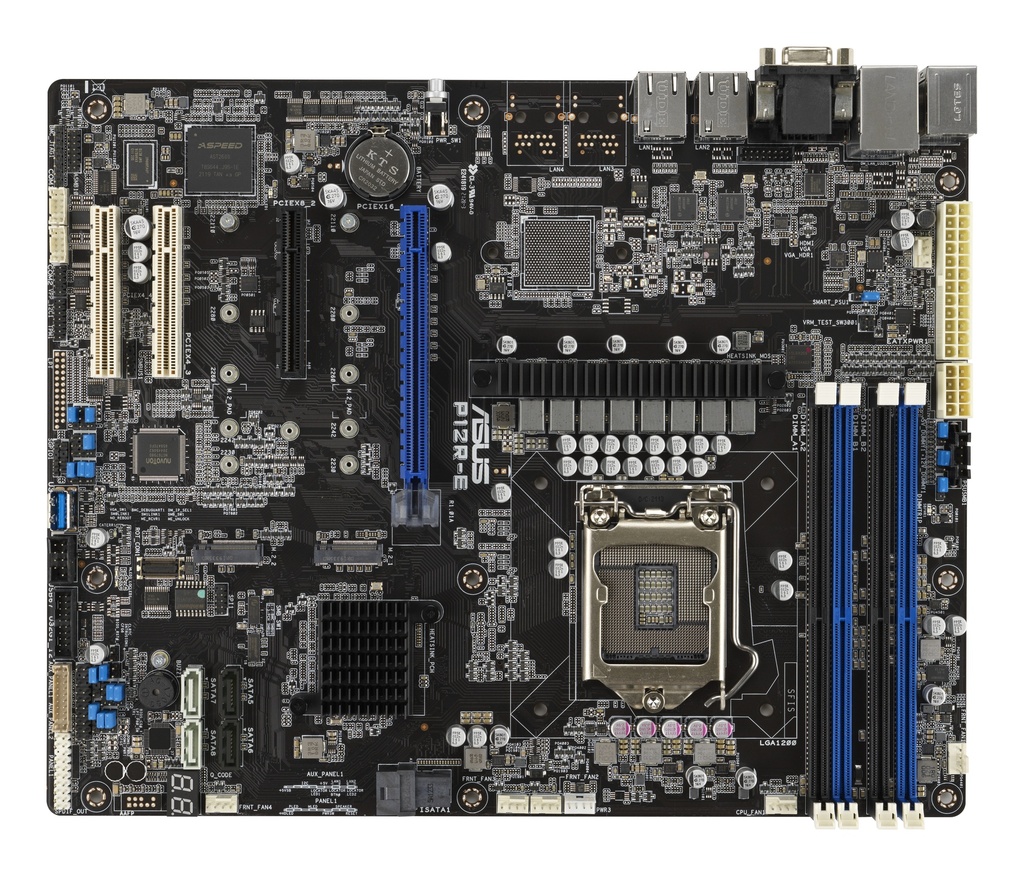

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Specificaties
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel Pentium,Intel Xeon E |
| Geheugen | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2666,2933,3200 |
| Maximum internal memory | 128 |
| Ondersteunde geheugenkloksnelheid (max) | 3200 |
| Ondersteunde geheugenmodule capaciteiten | 8GB,16GB,32GB |
| Grafisch | |
|---|---|
| On-board graphics card | Ja |
| On-board graphics card model | Aspeed AST2600 |
| Graphics card family | ASPEED |
| On-board graphics adapter geheugen | 64 |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Geen |
| Poorten & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Gewicht en omvang | |
|---|---|
| Breedte | 305 |
| Diepte | 244 |
| Hoogte | 68 |
| Gewicht | 800 |
| Kenmerken | |
|---|---|
| Component for | Server |
| Motherboard chipset | Intel C256 |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| PC gezondheids monitor | CPU,FAN |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 10 - 50 |
| Temperatuur bij opslag | -40 - 70 |
| Luchtvochtigheid bij opslag | 20 - 90 |
| Verpakking | |
|---|---|
| Breedte verpakking | 341 |
| Diepte verpakking | 281 |
| Hoogte verpakking | 78 |
| Gewicht verpakking | 1500 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 84733020 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Maximum aantal HDD's per behuizing | 8 |
| Number of storage drives supported | 10 |
| RAID support | Ja |
| Interne aansluitingen | |
|---|---|
| USB 2.0 aansluitingen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Ja |
| TPM connector | Ja |
| Chassis intrusion aansluiting | Ja |
| Aansluiting voor ventilator van voeding | Ja |
| COM aansluitingen | 1 |
| Aansluitingen achterzijde | |
|---|---|
| PS/2 poort(en) | 1 |
| Uitbreidingsmodules | |
|---|---|
| Aantal M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
