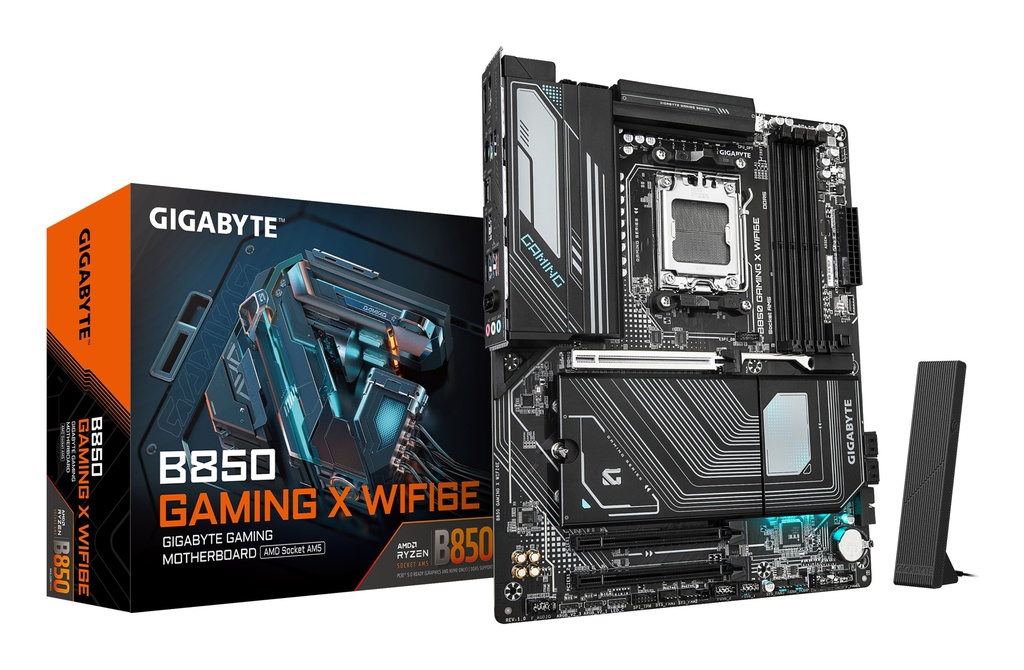

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specificaties
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Maximum resolution | 4096 x 2160 |
| Parallel processing technology support | Not supported |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Geheugen | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC-compatibiliteit | non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 |
| Maximum internal memory | 256 |
| Ondersteunde geheugenkloksnelheid (max) | 8200 |
| Niet gebufferd geheugen | Ja |
| Maximaal intern geheugen per slot | 64 |
| Netwerk | |
|---|---|
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Ja |
| Bluetooth | Ja |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| WLAN-controller-model | Realtek RTL8111H |
| Poorten & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPorts quantity | 1 |
| Accu/Batterij | |
|---|---|
| Batterijtechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Gewicht batterij | 3 |
| Lithiumgewicht per batterij | 0.07 |
| Aantal batterijcellen | 1 |
| Gewicht en omvang | |
|---|---|
| Breedte | 305 |
| Diepte | 244 |
| Hoogte | 35 |
| Inhoud van de verpakking | |
|---|---|
| Antenne inbegrepen | Ja |
| Screws included | Ja |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batterijen inbegrepen | Ja |
| Kenmerken | |
|---|---|
| Country of origin | China |
| Component for | PC |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 |
| Moederbord form factor | ATX |
| Moederbord chipset familie | AMD |
| PC gezondheids monitor | FAN,Temperature,Voltage,Water cooling |
| Verpakking | |
|---|---|
| Breedte verpakking | 335 |
| Diepte verpakking | 270 |
| Hoogte verpakking | 80 |
| Gewicht verpakking | 2375 |
| Logistieke gegevens | |
|---|---|
| Products per shipping (inner) case | 1 |
| Prestatie | |
|---|---|
| DirectX version | 12.0 |
| Warranty period | 3 |
| HDCP | Ja |
| Minimale systeemeisen | |
|---|---|
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Opslag-controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Maximum aantal HDD's per behuizing | 4 |
| Number of storage drives supported | 7 |
| RAID support | Ja |
| RAID levels | 0,1,10 |
| Interne aansluitingen | |
|---|---|
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Number of SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| 12V vermogen-connector | Ja |
| Voorpaneel-connector | Ja |
| Aantal CPU-ventilatoraansluitingen | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Ja |
| Aantal EPS-voedingsaansluitingen (8-pins) | 1 |
| Serial port headers | 1 |
| RGB LED-aansluitrail | Ja |
| Aantal RGB LED-pinheaders | 4 |
| Aantal waterpompaansluitingen | 2 |
| USB 3.2 Gen 2x2-aansluitingen | 1 |
| Aansluitingen achterzijde | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Ja |
| WiFi-AP antenna jack | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Ja |
| Clear CMOS knop | Ja |
| Versie Desktop Management Interface (DMI) | 2.7 |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
| Uitbreidingsmodules | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Aantal M.2 (M) slots | 3 |
| 1e M.2 grootste sleutelgrootte | 25110 |
| 1e M.2 hoogste PCI Express-generatie | 5.0 |
| 2e M.2 grootste sleutelgrootte | 22110 |
| 2e M.2 hoogste PCI Express-generatie | 4.0 |
| 3e M.2 grootste sleutelgrootte | 22110 |
| 3e M.2 hoogste PCI Express-generatie | 4.0 |
