Excellent Hardware Designs

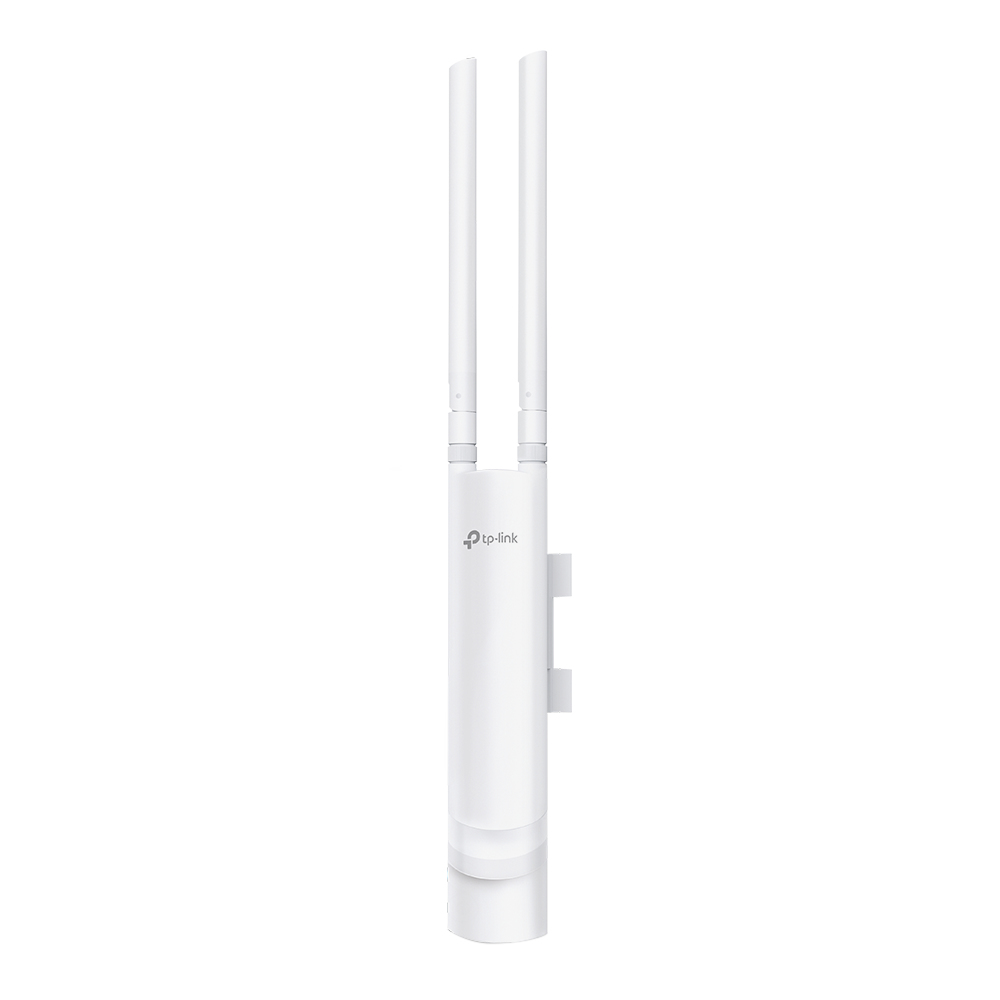

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
Specificaties
| Design | |
|---|---|
| Kleur van het product | White |
| International Protection (IP) code | IP65 |
| Reset button | Ja |
| Plaatsing | Pole,Wall |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| VLAN support | Ja |
| Rate limiting | Ja |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Energie | |
|---|---|
| Power consumption (typical) | 10.5 |
| Voltage | 24 |
| Type Power over Ethernet (PoE) ondersteunt | Passive PoE |
| Beveiliging | |
|---|---|
| Access Control List (ACL) | Ja |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Ja |
| Service Set Identifier (SSID) functies | Multiple SSIDs |
| Aantal SSID-ondersteuningen | 16 |
| Gewicht en omvang | |
|---|---|
| Breedte | 215 |
| Diepte | 46 |
| Hoogte | 27 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Ja |
| AC adapter included | Ja |
| Mounting kit | Ja |
| Kenmerken | |
|---|---|
| Quantity per pack | 1 |
| Maximum data transfer rate | 1200 |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Geen |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 300 |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 867 |
| MIMO | Ja |
| MIMO type | Multi User MIMO |
| Airtime Fairness (ATF) | Ja |
| BeamForming | Ja |
| Frequency band | 2.4 - 5 |
| Bandbreedteaansturing | Ja |
| Transmitting power (CE) | 27 |
| Zendvermogen (FCC) | 22 |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | -30 - 70 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 140 |
| Diepte verpakking | 270 |
| Hoogte verpakking | 100 |
| Gewicht verpakking | 640 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Beheerfuncties | |
|---|---|
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Syslog | Ja |
| Antenne | |
|---|---|
| Antenna type | External |
| Antenne versterkingsniveau (max) | 4 |
| Antennas quantity | 2 |
| Type antennerichting | Omni-directional |
| Antennefuncties | Detachable antenna |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
