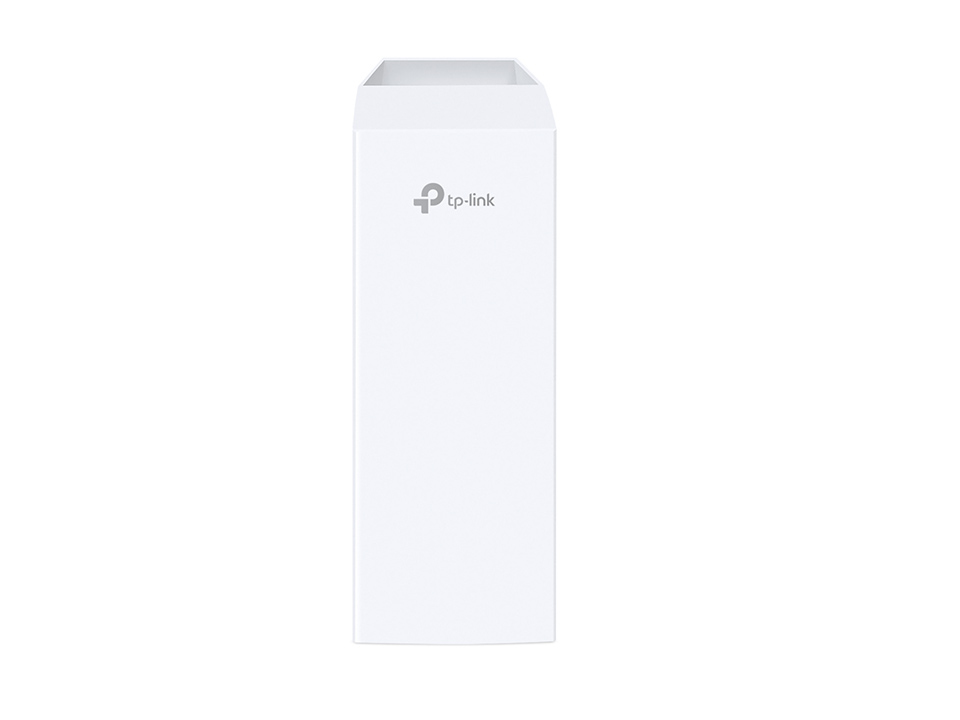

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Specificaties
| Design | |
|---|---|
| Kleur van het product | White |
| LED-indicatoren | Status |
| International Protection (IP) code | IPX5 |
| Reset button | Ja |
| Plaatsing | Pole |
| Netwerk | |
|---|---|
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| VLAN support | Ja |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Ja |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Voltage | 24 |
| Output current | 0.25 |
| Type Power over Ethernet (PoE) ondersteunt | Passive PoE |
| Beveiliging | |
|---|---|
| IGMP snooping | Ja |
| Security algorithms | AES,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering | Ja |
| Service Set Identifier (SSID) functies | SSID broadcast,SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 224 |
| Diepte | 79 |
| Hoogte | 60 |
| Inhoud van de verpakking | |
|---|---|
| Meegeleverde kabels | AC |
| Mounting kit | Ja |
| Kenmerken | |
|---|---|
| Quantity per pack | 1 |
| Maximum data transfer rate | 300 |
| 2,4 GHz | Ja |
| 5 GHz | Geen |
| 6 GHz | Geen |
| MIMO | Ja |
| Frequency band | 2.4 - 2.483 |
| Automatische kanaalselectie | Ja |
| Automatisch scannen kanalen | Ja |
| Draadloze isolatie | Ja |
| Dynamic Frequency Selection (DFS) | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | -30 - 70 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 95 |
| Certificaten | |
|---|---|
| Certificering | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS |
| Verpakking | |
|---|---|
| Breedte verpakking | 132 |
| Diepte verpakking | 270 |
| Hoogte verpakking | 106 |
| Gewicht verpakking | 760 |
| Prestatie | |
|---|---|
| Flash memory | 8 |
| Built-in processor | Ja |
| Beheerfuncties | |
|---|---|
| Web-based management | Ja |
| Firmware upgradeable | Ja |
| Beheerplatform | Pharos Control |
| Protocollen | |
|---|---|
| Universal Plug and Play (UPnP) | Ja |
| Antenne | |
|---|---|
| Antenna type | Internal |
| Antenne versterkingsniveau (max) | 9 |
| Type antennerichting | Directional |
| Polarisatie | Dual polarization |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
