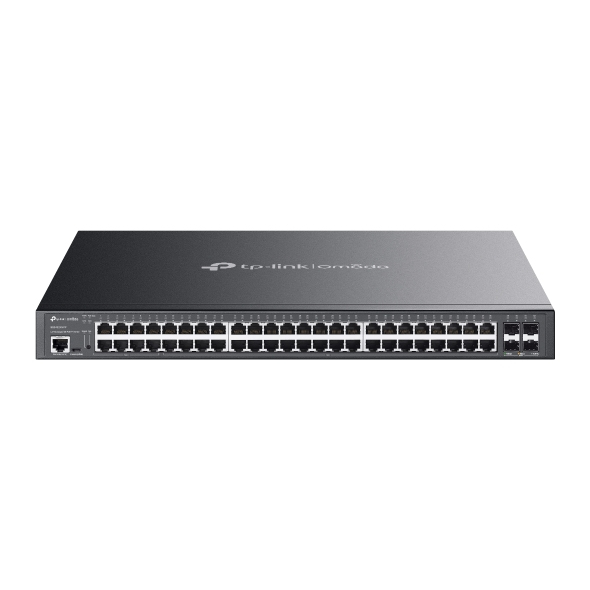

TP-LINK Switch SG3452XMPP 48xGBit/4x 10 GE SFP+ 8x PoE++ (750W) Managed Omada, L2+, Rack Mountable

TP-Link Omada SG3452XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vormfactor
  • Kleur van het product - Black
  • LED-indicatoren
  • Bedrijfstemperatuur (T-T)
  • Temperatuur bij opslag
  • Relatieve vochtigheid in bedrijf (V-V)
  • Luchtvochtigheid bij opslag
  • Certificering
  • Meegeleverde kabels
  • Breedte
  • Diepte
  • Hoogte
  • Number of fans
  • AC input voltage
  • AC input frequency
  • Link aggregation
  • Rack mounting
  • Quick start guide
  • Switch type
  • Switch layer
  • Quality of Service (QoS) support
  • Web-based management
  • Basic switching RJ-45 Ethernet ports quantity
  • Basic switching RJ-45 Ethernet ports type
  • SFP+ module slots quantity
  • Console port
  • Networking standards
  • 10G support
  • Flow control support
  • Spanning tree protocol
  • VLAN support
  • Switching capacity
  • MAC address table
  • Jumbo frames support
  • Jumbo frames
  • DHCP features
  • Access Control List (ACL)
  • IGMP snooping
  • Reset button
  • Power source
  • Power supply included
  • Power consumption (max)
  • Power over Ethernet (PoE)
  • Cloud-managed
  • ARP inspection
  • Configuring Location Settings (CLI)
  • System event log
  • Port mirroring
  • Broadcast storm control
  • Rate limiting
  • Forwarding rate
  • Packet buffer memory
  • SSH/SSL support
  • Authentication
  • Multicast support
  • Heat dissipation
  • MAC address filtering
  • Power connector
  • Head-of-line (HOL) blocking
  • Store-and-forward
  • Static port security
  • BPDU filtering/protection
  • IP-MAC-Port binding
  • Power over Ethernet plus (PoE+) ports quantity
  • Power over Ethernet 4PPoE (PoE++) ports quantity
  • Power over Ethernet (PoE) power per port
  • Total Power over Ethernet (PoE) budget
Aan winkelmandje toevoegen
Toevoegen aan verlanglijst
Prijs
1.492,75 € 1.492,75 €

Algemene voorwaarden
Geld-terug-garantie van 30 dagen
Verzending: 2-3 werkdagen
TP-Link Omada SG3452XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specificaties

Design
Vormfactor 1U
Kleur van het product Black
LED-indicatoren Ja
Number of fans 3
Rack mounting Ja
Reset button Ja
Netwerk
Link aggregation Ja
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
10G support Ja
Flow control support Ja
Spanning tree protocol Ja
VLAN support Ja
Port mirroring Ja
Broadcast storm control Ja
Rate limiting Ja
Head-of-line (HOL) blocking Ja
Poorten & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Power connector AC-in jack
Energie
AC input voltage 100 - 240
AC input frequency 50/60
Power source AC
Power supply included Ja
Power consumption (max) 635.7
Beveiliging
DHCP features DHCP client,DHCP relay,DHCP server
Access Control List (ACL) Ja
IGMP snooping Ja
SSH/SSL support Ja
Authentication Auto VLAN,Guest VLAN
MAC address filtering Ja
Static port security Ja
BPDU filtering/protection Ja
IP-MAC-Port binding Ja
Gewicht en omvang
Breedte 440
Diepte 330
Hoogte 44
Inhoud van de verpakking
Meegeleverde kabels AC
Quick start guide Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40
Temperatuur bij opslag -40 - 70
Relatieve vochtigheid in bedrijf (V-V) 10 - 90
Luchtvochtigheid bij opslag 5 - 90
Heat dissipation 2169.2
Certificaten
Certificering CE, FCC, RoHS
Beheerfuncties
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Ja
Web-based management Ja
Cloud-managed Ja
ARP inspection Ja
Configuring Location Settings (CLI) Ja
System event log Ja
Data-uitwisseling
Switching capacity 176
MAC address table 16000
Jumbo frames support Ja
Jumbo frames 9000
Forwarding rate 130.9
Packet buffer memory 12
Store-and-forward Ja
Power over Ethernet (PoE)
Power over Ethernet (PoE) Ja
Power over Ethernet plus (PoE+) ports quantity 40
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Power over Ethernet (PoE) power per port 30
Total Power over Ethernet (PoE) budget 750
Multicast-functies
Multicast support Ja
