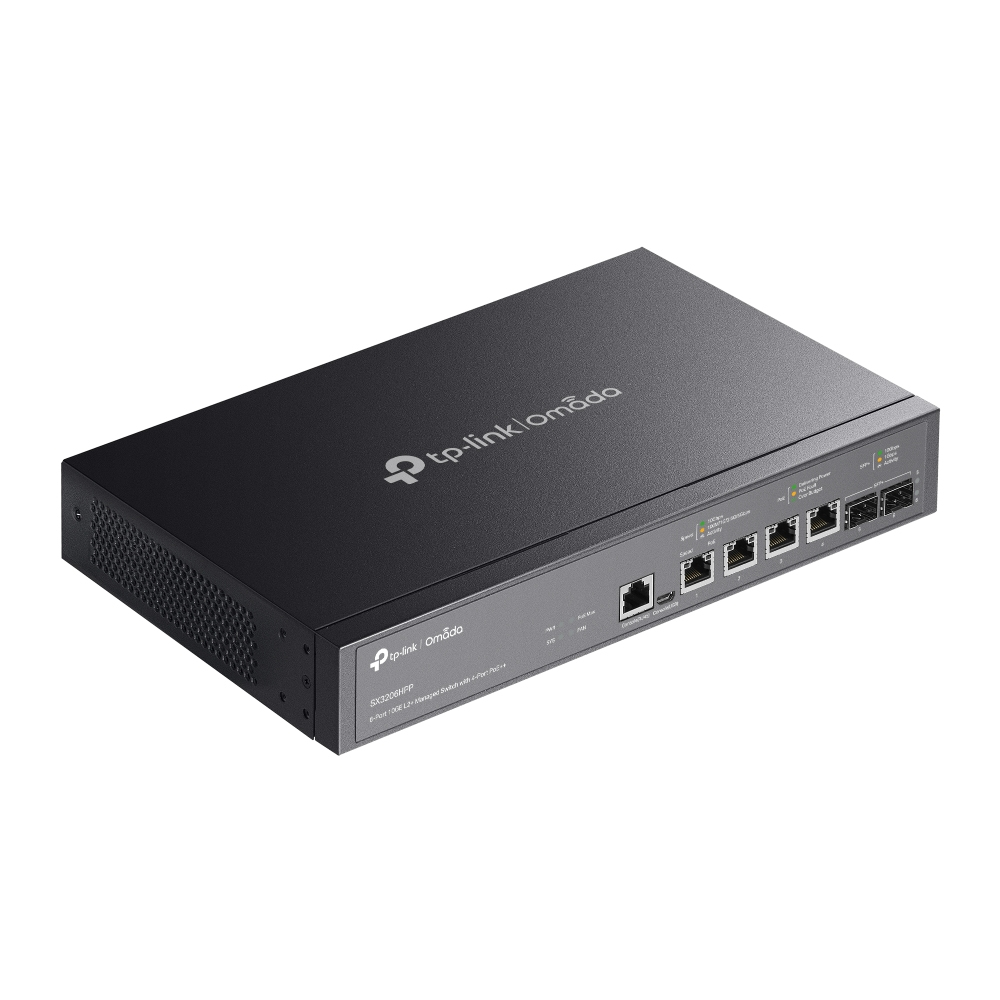

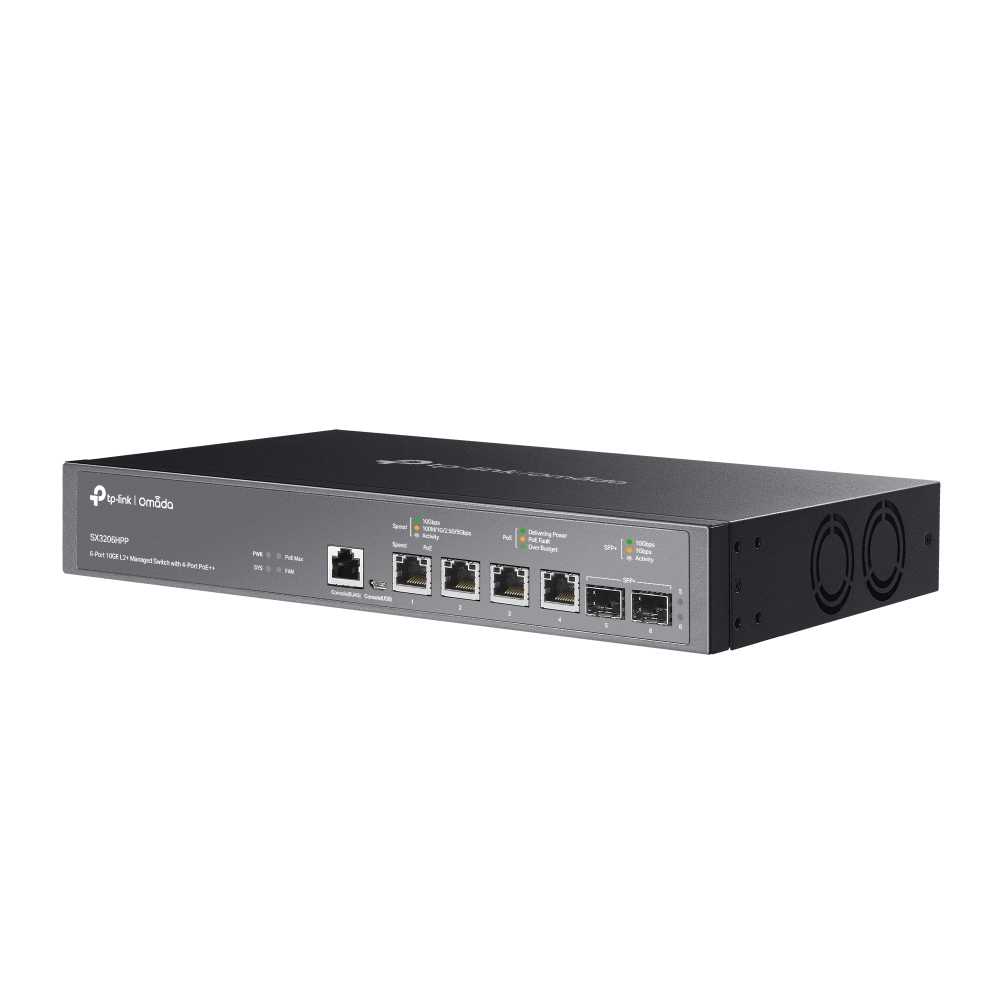

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specificaties
| Design | |
|---|---|
| Kleur van het product | Black |
| LED-indicatoren | Ja |
| Number of fans | 2 |
| Rack mounting | Ja |
| Netwerk | |
|---|---|
| Link aggregation | Ja |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
| 10G support | Ja |
| Flow control support | Ja |
| Spanning tree protocol | Ja |
| VLAN support | Ja |
| Virtual LAN features | Private VLAN,Tagged VLAN,VLAN mapping,Voice VLAN |
| Port mirroring | Ja |
| IP routing | Ja |
| Broadcast storm control | Ja |
| Rate limiting | Ja |
| Head-of-line (HOL) blocking | Ja |
| Number of VLANs | 4000 |
| Routing entries | 512 |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power source | AC |
| Power supply included | Ja |
| Power consumption (max) | 244.9 |
| Beveiliging | |
|---|---|
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Security algorithms | HTTPS,SSL/TLS |
| SSH/SSL support | Ja |
| Loop protection | Ja |
| Authentication | Guest VLAN |
| Authentication type | AAA,RADIUS,TACACS+ |
| BPDU filtering/protection | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 294 |
| Diepte | 180 |
| Hoogte | 44 |
| Inhoud van de verpakking | |
|---|---|
| Meegeleverde kabels | AC |
| Rack mount kit | Ja |
| Quick start guide | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 50 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 95 |
| Heat dissipation | 835.67 |
| Certificaten | |
|---|---|
| Certificering | CE, FCC, RoHS |
| Prestatie | |
|---|---|
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Cloud-managed | Ja |
| ARP inspection | Ja |
| Configuring Location Settings (CLI) | Ja |
| System event log | Ja |
| MIB support | Ja |
| Protocollen | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 120 |
| MAC address table | 32000 |
| Jumbo frames support | Ja |
| Jumbo frames | 9000 |
| Forwarding rate | 89.28 |
| Static route | Ja |
| Packet buffer memory | 16 |
| Number of static routes | 48 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 |
| Total Power over Ethernet (PoE) budget | 200 |
| Multicast-functies | |
|---|---|
| Multicast support | Ja |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
