Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

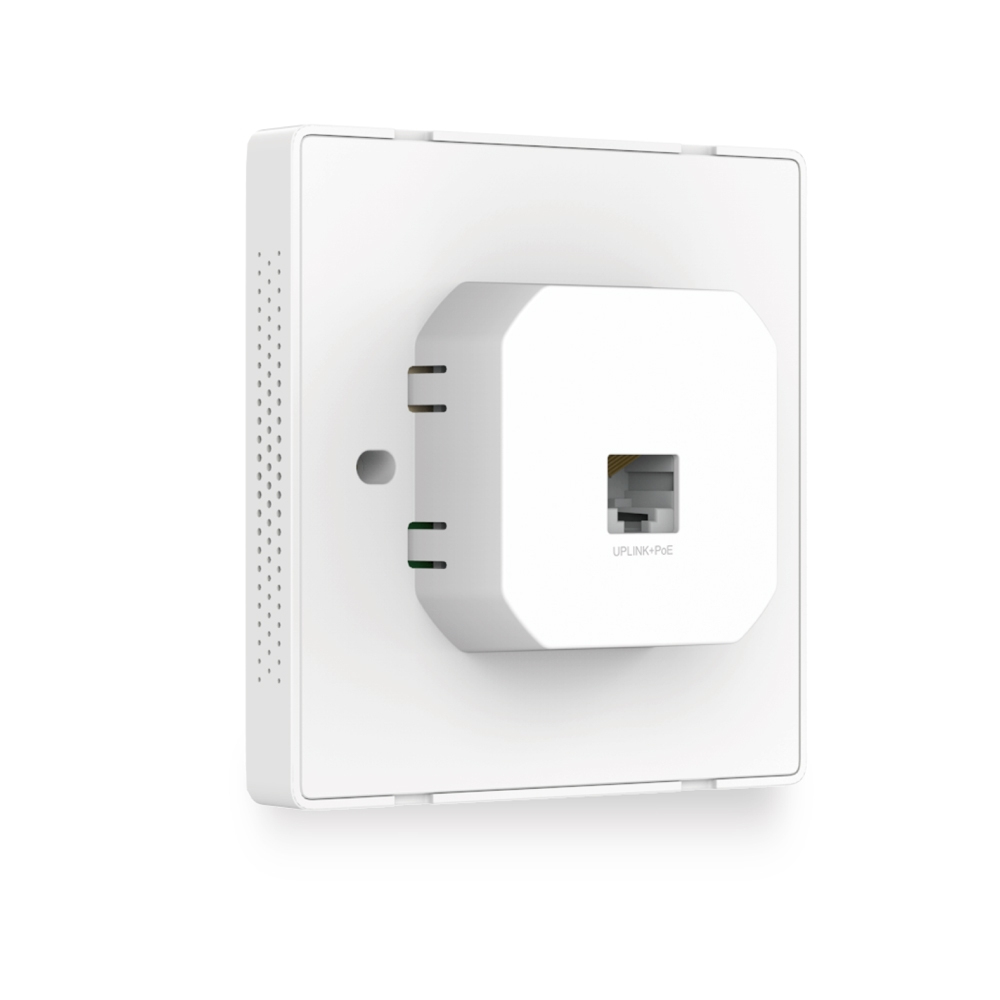

High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specificaties
| Design | |
|---|---|
| Kleur van het product | White |
| LED-indicatoren | Operation |
| Reset button | Ja |
| Plaatsing | Wall |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| VLAN support | Ja |
| Rate limiting | Ja |
| Cabling technology | 10/100/1000Base-T(X) |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN-poort | Ethernet (RJ-45) |
| Energie | |
|---|---|
| Power consumption (typical) | 9 |
| Power consumption (max) | 25.5 |
| Beveiliging | |
|---|---|
| Access Control List (ACL) | Ja |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,SNMP,SNMPv2,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering | Ja |
| Service Set Identifier (SSID) functies | Multiple SSIDs |
| Aantal SSID-ondersteuningen | 16 |
| Gewicht en omvang | |
|---|---|
| Breedte | 86.8 |
| Diepte | 86.8 |
| Hoogte | 30.2 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Ja |
| Mounting kit | Ja |
| Kenmerken | |
|---|---|
| Quantity per pack | 2 |
| Maximum data transfer rate | 1167 |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Geen |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 300 |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 867 |
| MIMO | Ja |
| MIMO type | Multi User MIMO |
| BeamForming | Ja |
| Frequency band | 2.4 - 5 |
| Automatische kanaalselectie | Ja |
| Automatisch scannen kanalen | Ja |
| Bandbreedteaansturing | Ja |
| Transmitting power (CE) | 20 - 23 |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 118 |
| Diepte verpakking | 130 |
| Hoogte verpakking | 47 |
| Gewicht verpakking | 210 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Beheerfuncties | |
|---|---|
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Syslog | Ja |
| Antenne | |
|---|---|
| Antenna type | Internal |
| Antenne versterkingsniveau (max) | 3.6 |
| Antennas quantity | 2 |
| Antennefuncties | Integrated antenna |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
