D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

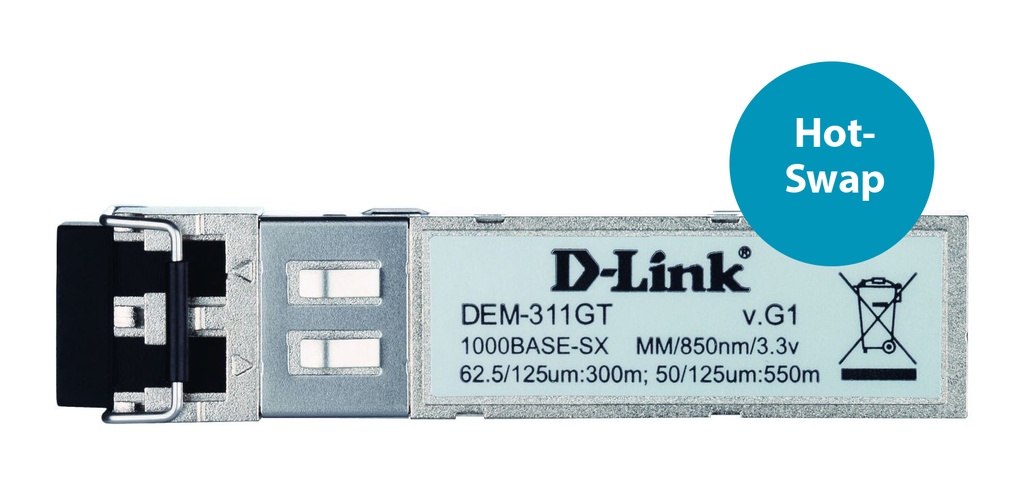

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Specificaties
| Design | |
|---|---|
| Housing material | Metal |
| Energie | |
|---|---|
| Maximaal voltage | 6 |
| Gewicht en omvang | |
|---|---|
| Breedte | 13.8 |
| Diepte | 57.2 |
| Hoogte | 8.5 |
| Kenmerken | |
|---|---|
| Hot-plug ondersteuning | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 85 |
| Certificaten | |
|---|---|
| Certificering | MSA, RoHS |
| Verpakking | |
|---|---|
| Breedte verpakking | 74 |
| Diepte verpakking | 131 |
| Hoogte verpakking | 49 |
| Gewicht verpakking | 64 |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85369010 |
| Pallet gross width | 1220 |
| Pallet gross length | 1020 |
| Products per shipping (inner) case | 50 |
| Products per pallet (air) | 2700 |
| Products per pallet (sea) | 2700 |
| Pallet height (sea) | 1990 |
| Pallet height (air) | 1990 |
| Pallet gross weight (air) | 246800 |
| Master (outer) cases per pallet (air) | 54 |
| Pallet gross weight (sea) | 246800 |
| Master (outer) cases per pallet (sea) | 54 |
| Shipping (inner) case width | 260 |
| Shipping (inner) case length | 360 |
| Shipping (inner) case height | 310 |
| Shipping (inner) case gross weight | 4200 |
| Shipping (inner) case net weight | 3200 |
| Prestatie | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 550 |
| Single-mode glasvezelkabel (SMF) ondersteund | Geen |
| Multi-mode glasvezelkabel (MMF) ondersteund | Ja |
| SFP-zendernorm | SX |
| Wavelength | 850 |
| Duplex system | Full |
