What This Product Does

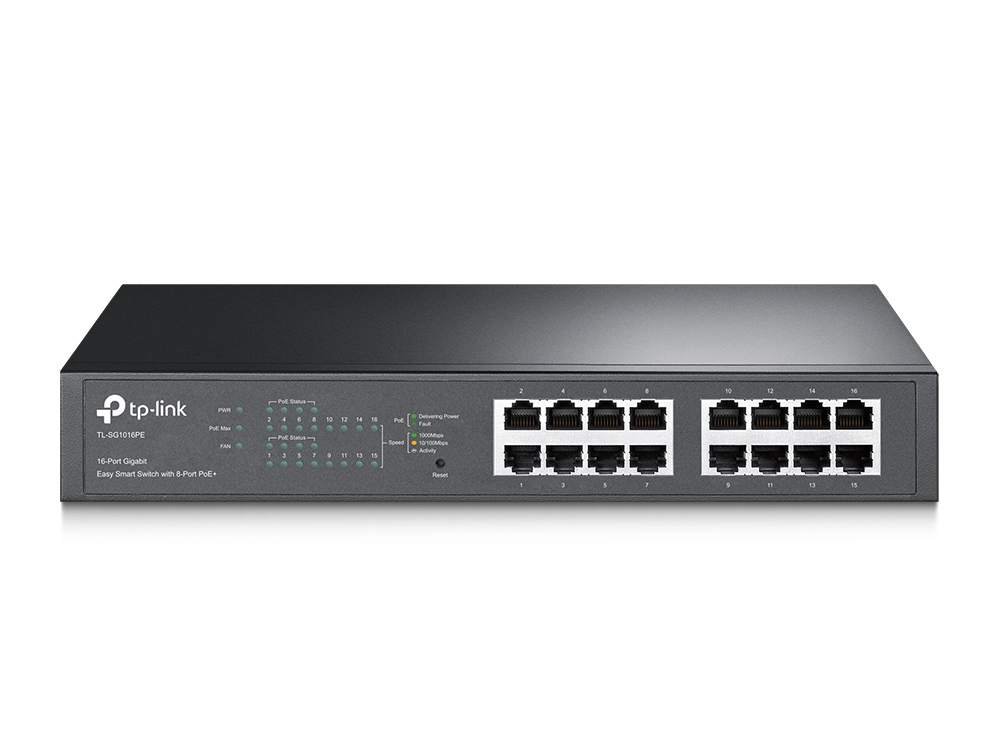

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Specificaties
| Design | |
|---|---|
| Vormfactor | 1U |
| Kleur van het product | Black |
| LED-indicatoren | Ja |
| Number of fans | 1 |
| Rack mounting | Ja |
| Stackable | Geen |
| Housing material | Metal |
| Netwerk | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Link aggregation | Ja |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | Geen |
| Flow control support | Ja |
| Auto-negotiation | Ja |
| VLAN support | Ja |
| Virtual LAN features | Tagged VLAN,Port-based VLAN |
| Port mirroring | Ja |
| Broadcast storm control | Ja |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Number of VLANs | 4000 |
| Auto MDI/MDI-X | Ja |
| Poorten & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Energie | |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power source | AC/PoE |
| Power supply included | Ja |
| Power consumption (max) | 124.4 |
| Beveiliging | |
|---|---|
| IGMP snooping | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 294 |
| Diepte | 180 |
| Hoogte | 44 |
| Inhoud van de verpakking | |
|---|---|
| Meegeleverde kabels | AC |
| Rack mount kit | Ja |
| User guide | Ja |
| Resource CD | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 250 |
| Diepte verpakking | 400 |
| Hoogte verpakking | 80 |
| Gewicht verpakking | 2280 |
| Package type | Box |
| Prestatie | |
|---|---|
| Compatible operating systems | Windows |
| Maximum cable length | 100 |
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Data-uitwisseling | |
|---|---|
| Switching capacity | 32 |
| MAC address table | 8000 |
| Jumbo frames support | Ja |
| Jumbo frames | 10000 |
| Forwarding rate | 23.8 |
| Packet buffer memory | 4.1 |
| Store-and-forward | Ja |
| Number of queues | 4 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 110 |
