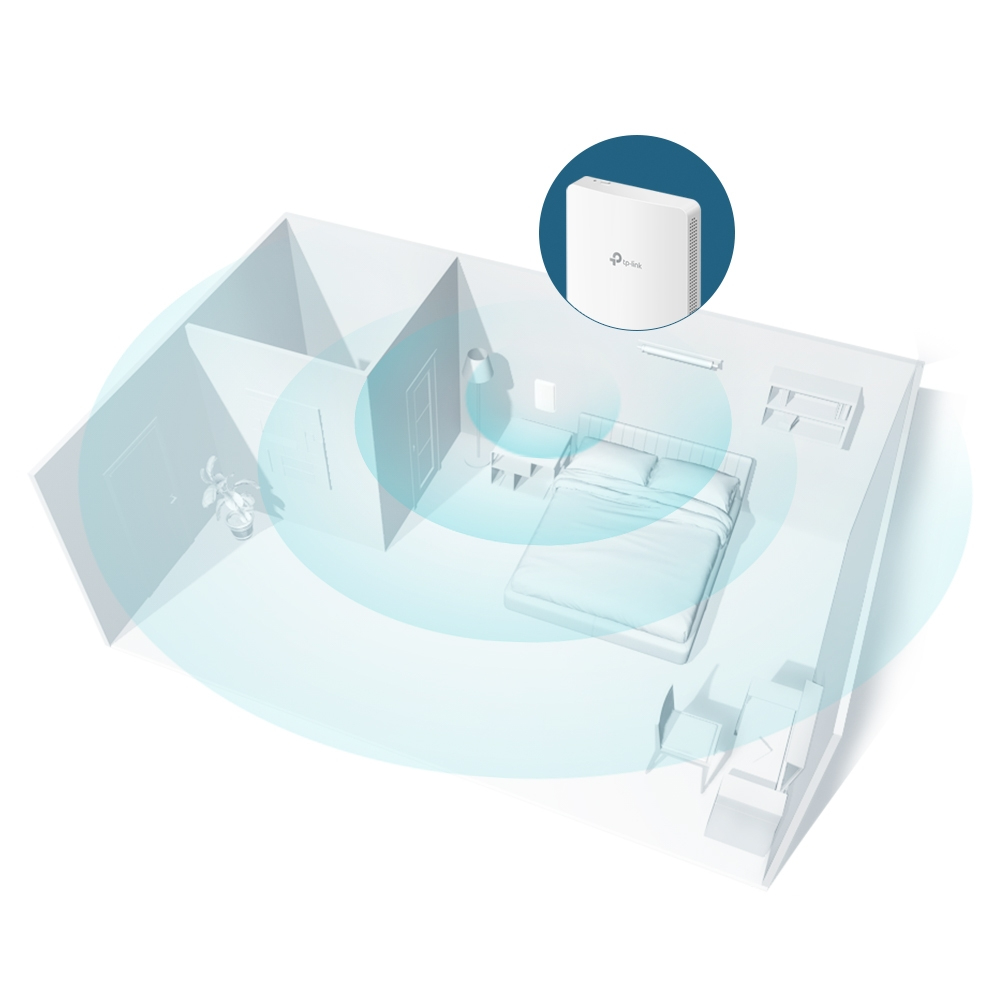

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

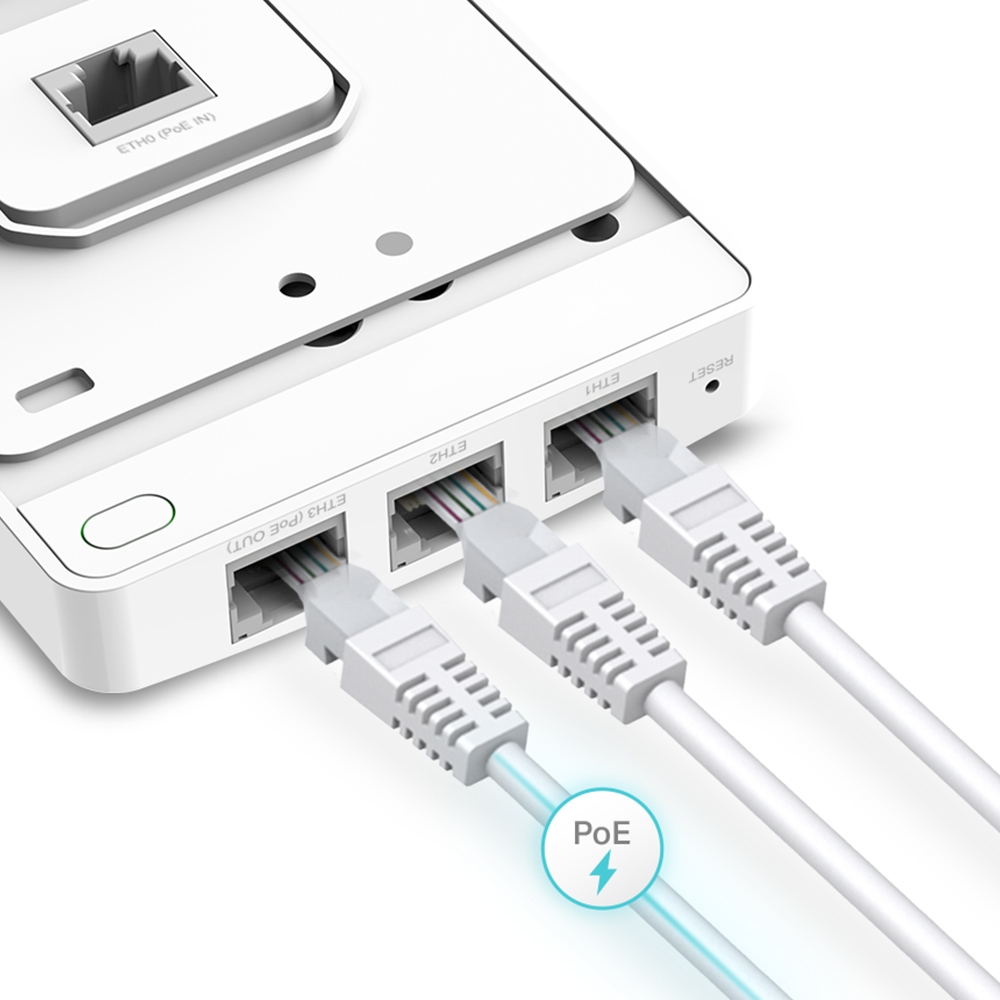

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specificaties
| Design | |
|---|---|
| Kleur van het product | White |
| LED-indicatoren | LAN,Power,Status,WAN,WLAN |
| Cable lock slot | Ja |
| Reset button | Ja |
| Plaatsing | Wall |
| Netwerk | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 |
| VLAN support | Ja |
| Rate limiting | Ja |
| Cabling technology | 10/100/1000Base-T(X) |
| Poorten & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN-poort | Ethernet (RJ-45) |
| Energie | |
|---|---|
| Power consumption (typical) | 24.4 |
| Type Power over Ethernet (PoE) ondersteunt | Active PoE,Passive PoE |
| Beveiliging | |
|---|---|
| Access Control List (ACL) | Ja |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,802.1x RADIUS,HTTPS,SNMP,SNMPv3,SSH,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering | Ja |
| Service Set Identifier (SSID) functies | Multiple SSIDs |
| Aantal SSID-ondersteuningen | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Ja |
| Gewicht en omvang | |
|---|---|
| Breedte | 143 |
| Diepte | 86 |
| Hoogte | 20 |
| Inhoud van de verpakking | |
|---|---|
| Quick start guide | Ja |
| Mounting kit | Ja |
| Kenmerken | |
|---|---|
| Quantity per pack | 1 |
| Maximum data transfer rate | 1167 |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Geen |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 300 |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 867 |
| MIMO | Ja |
| MIMO type | Multi User MIMO |
| BeamForming | Ja |
| Frequency band | 2.4 - 5 |
| Automatische kanaalselectie | Ja |
| Automatisch scannen kanalen | Ja |
| Bandbreedteaansturing | Ja |
| Transmitting power (CE) | 20 - 23 |
| Zendvermogen (FCC) | 21 |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Draadloze isolatie | Ja |
| Eisen aan de omgeving | |
|---|---|
| Bedrijfstemperatuur (T-T) | 0 - 40 |
| Temperatuur bij opslag | -40 - 70 |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 |
| Luchtvochtigheid bij opslag | 5 - 90 |
| Certificaten | |
|---|---|
| Certificaten van naleving | CE,Federal Communications Commission (FCC),RoHS |
| Duurzaamheid | |
|---|---|
| Sustainability compliance | Ja |
| Verpakking | |
|---|---|
| Breedte verpakking | 117 |
| Diepte verpakking | 184 |
| Hoogte verpakking | 33 |
| Gewicht verpakking | 300 |
| Package type | Box |
| Logistieke gegevens | |
|---|---|
| Code geharmoniseerd systeem (HS) | 85176990 |
| Prestatie | |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Beheerfuncties | |
|---|---|
| Quality of Service (QoS) support | Ja |
| Web-based management | Ja |
| Syslog | Ja |
| Protocollen | |
|---|---|
| Universal Plug and Play (UPnP) | Ja |
| Antenne | |
|---|---|
| Antenna type | Internal |
| Antenne versterkingsniveau (max) | 4 |
| Antennas quantity | 2 |
| Antennefuncties | Integrated antenna |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
